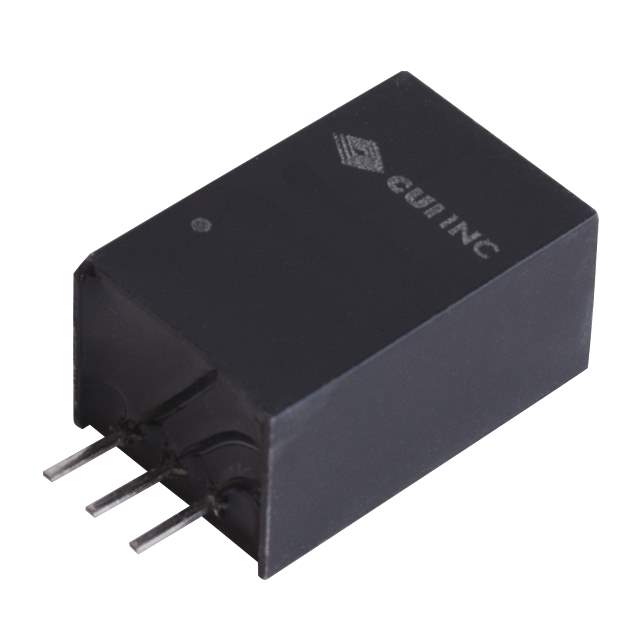

Same model may have multiple batches, images only for reference.

V7812-1000

Name: V7812-1000
Brand: CUI Inc.
SKU: 1336451
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	V7812-1000
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 12W / Linear Regulator Replacement DC DC Converter 1 Output 12V 1A 16V - 32V Input
Datasheet	V7812-1000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	CUI Inc.
Packaging	Tube
Product Status	Not For New Designs
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	16V
Voltage - Input (Max)	32V
Voltage - Output 1	12V
Current - Output (Max)	1A
Power (Watts)	12 W
Applications	ITE (Commercial)
Features	OTP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95%
Mounting	Through Hole
Case / Package	3-SIP Module
Size / Dimension	0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Base Product Number	V7812
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2266-V7812-1000,656-90605R,V78121000,102-1718
Standard Package	44
Win Source Part Number	1336451-V7812-1000
Ultra Librarian 3D Model	Ultra Librarian V7812-1000 CAD Model

Alternative Products

Description

The V7812-1000 is a linear regulator replacement DC-DC converter manufactured by CUI Inc.

Features: OTP and SCP
Case: 3-SIP module
Power: 12 W
Efficiency: 95%
Outputs: 1
Output Current: 1A
Input Voltage: 16V to 32V
Application: ITE (Commercial)
Package: 44
RoHS: Compliant
MSL: 1 (Unlimited)
