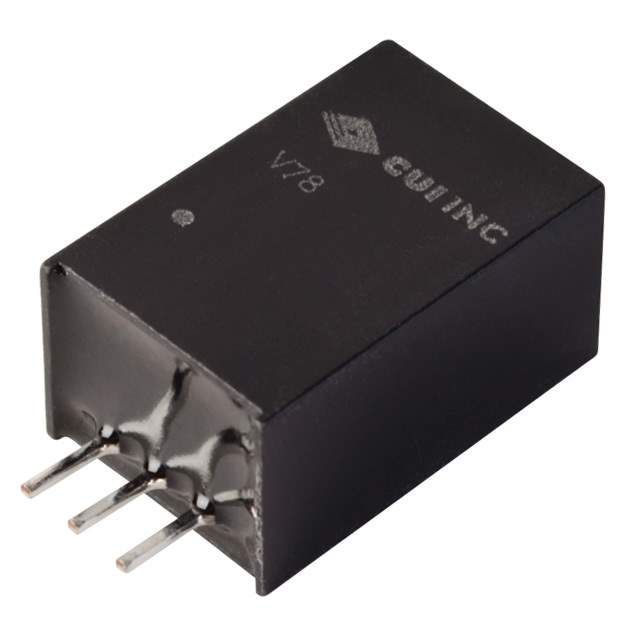

Same model may have multiple batches, images only for reference.

V7805W-500

Name: V7805W-500
Brand: CUI Inc.
SKU: 1341285
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	V7805W-500
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2.5W / Linear Regulator Replacement DC DC Converter 1 Output 5V 500mA 9V - 72V Input
Datasheet	V7805W-500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	V78W-500
Package	Tube
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	72V
Voltage - Output 1	5V
Current - Output (Max)	500mA
Power (Watts)	2.5 W
Applications	ITE (Commercial)
Features	OTP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	3-SIP Module
Size / Dimension	0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
Base Product Number	V7805
Standard Package	44
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1341285-V7805W-500
Ultra Librarian 3D Model	Ultra Librarian V7805W-500 CAD Model

Alternative Products

Description

The CUI Inc. V78W-500 series linear regulator replacement, V7805W-500, is a 2.5W power supply module in a 3-SIP package.

Series: V78W-500
Type: Linear Regulator Replacement
Power: 2.5W
Package: 3-SIP
Voltage Input: 9V to 72V
Voltage Output: 5V
Efficiency: 87%
Maximum Output Current: 500mA
Features: OTP and SCP
Application: ITE (Commercial)
Operating Temperature: -40°C to 85°C
