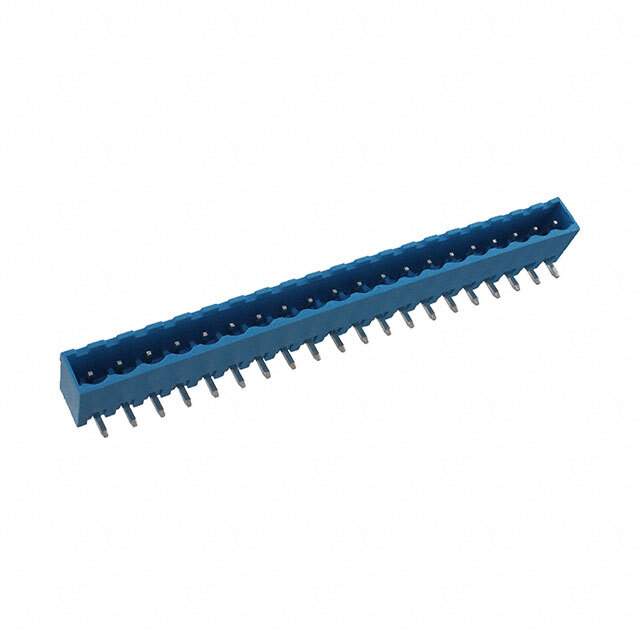

Same model may have multiple batches, images only for reference.

TBP01R1-508-20BE

Name: TBP01R1-508-20BE
Brand: CUI Inc.
SKU: 1350466
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TBP01R1-508-20BE
Manufacturer	CUI Inc.
Catalog	Headers, Plugs and Sockets
Description	TERMINAL BLOCK, PLUGGABLE, 5.08, / 20 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet	TBP01R1-508-20BE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	CUI Devices
Series	TBP01R1-508
Package	Box
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	20
Positions Per Level	20
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	20A
Voltage - IEC	320 V
Current - UL	16 A
Voltage - UL	300 V
Color	Blue
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66) , Nylon 6/6
Contact Tail Length	0.157" (4.00mm)
Insulation Height	0.335" (8.51mm)
Base Product Number	TBP01R1
Standard Package	350
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350466-TBP01R1-508-20BE
Ultra Librarian 3D Model	Ultra Librarian TBP01R1-508-20BE CAD Model

Alternative Products

Description

The TBP01R1-508 is a 20-position, 4-side shrouded male pin header terminal block designed for use in connectors, interconnects, and terminal blocks.

Number of Positions: 20
Pitch: 0.200" (5.08mm)
Current Rating (UL): 16A @ 300V
Current Rating (IEC): 20A @ 320V
Contact Material: Copper Alloy
Contact Mating Finish: Tin
Housing Material: Polyamide (PA66), Nylon 6/6
Flammability Rating: UL94 V-0
Termination Style: Torque Screw
Mounting Type: Through Hole
Insulation Height: 0.335" (8.51mm)
Contact Tail Length: 0.157" (4.00mm)
Operating Temperature: -40°C ~ 105°C
Package: Box
Standard Package: 350
Approval: EN
