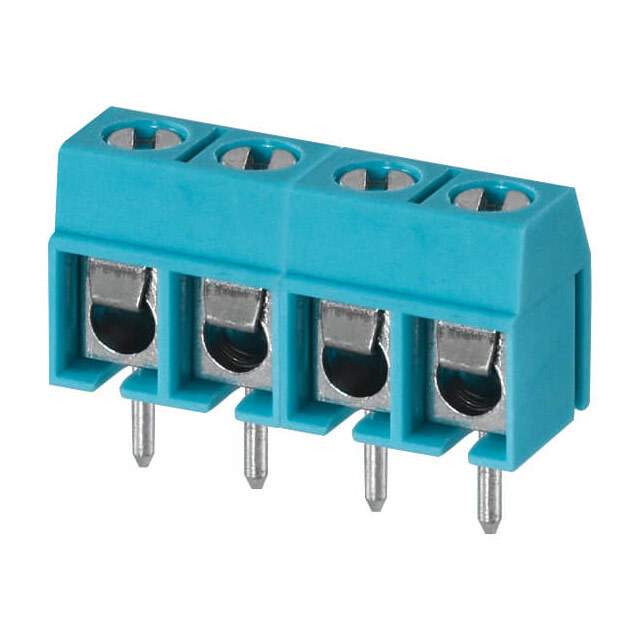

Same model may have multiple batches, images only for reference.

TB002-500-04BE

Name: TB002-500-04BE
Brand: CUI Inc.
SKU: 1339082
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TB002-500-04BE
Manufacturer	CUI Inc.
Catalog	Terminal Blocks
Description	TERMINAL BLOCK, SCREW TYPE, 5.00 / 4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Datasheet	TB002-500-04BE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr	CUI Devices
Series	TB002-500
Package	Bag
Number of Levels	1
Positions Per Level	4
Pitch	0.197" (5.00mm)
Mating Orientation	Horizontal with Board
Current	15 A
Voltage	300 V
Wire Gauge	12-22 AWG
Mounting Type	Through Hole
Wire Termination	Screw - Leaf Spring, Wire Guard
Features	Interlocking (Side)
Color	Blue
Temperature Range - Operating	-40°C ~ 105°C
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Torque - Screw	0.4 Nm (3.5 Lb-In)
Screw Thread	M2.5
Base Product Number	TB002
Standard Package	1,500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1339082-TB002-500-04BE
Ultra Librarian 3D Model	Ultra Librarian TB002-500-04BE CAD Model

Alternative Products

Description

The TB002-500-04BE is a wire-to-board terminal block from CUI Devices that is designed to provide a secure and reliable connection for 12-22 AWG wires.

Pitch: 0.197 inches
Wire Gauge: 12-22 AWG
Features: interlocking sides
Voltage Rating: 300V
Current Rating: 15A
Screw Thread: M2.5
Torque: 0.4 Nm (3.5 Lb-In)
Housing Color: blue
Housing Material: Polybutylene Terephthalate (PBT)
Package: bag
Compliance: REACH
Operating Temperature: -40°C to 105°C
