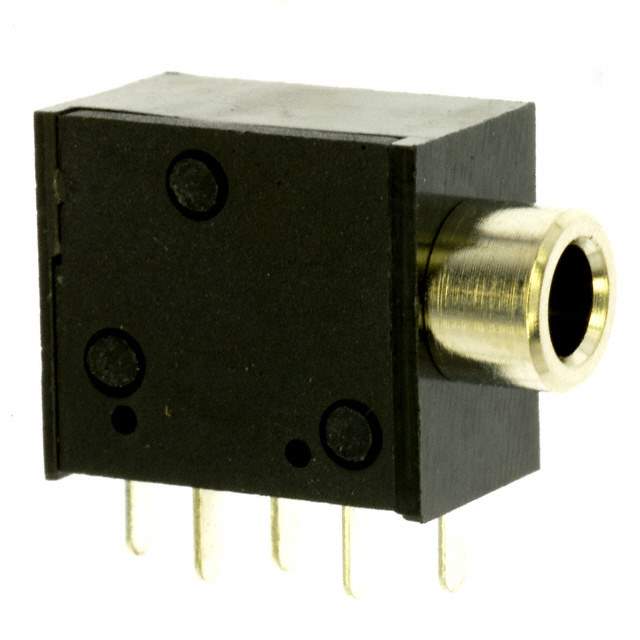

SJ1-3535N Real Image
Same model may have multiple batches, images only for reference.

SJ1-3535N

Part No SJ1-3535N
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK STEREO 3.5MM R/A / 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
SJ1-3535N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel Connectors>Audio Connectors
Manufacturer CUI Devices
Packaging Tray
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 3 Conductors, 5 Contacts
Internal Switch(s) Two Switches
Mounting Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 16VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Tin
Body Material Brass
Body Color Silver, Black
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Brass
Base Product Number SJ1-35
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SJ13535N,045-0982R,CP1-3535N
Standard Package 200
Win Source Part Number 1333970-SJ1-3535N
Ultra Librarian 3D Model Ultra Librarian SJ1-3535N CAD Model

Description

The SJ1-3535N is a phone jack connector that is used in audio applications.

  • Gender: Female
  • Shielding: Unshielded
  • Connector Material: Brass
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Conductor: 3
  • Contact: 5
  • Internal Switches: Two
  • Contact Material Plating: Tin
  • Mating Diameter: 3.50mm (0.141”, 1/8”, Mini Plug) – Headphone
  • Actual Diameter: 0.142” (3.60mm)
  • Mating Length/Depth: 0.551” (14.00mm)
  • Mounting Type: Through Hole
  • Package: Right-Angle
  • Operating Temperature Range: -25°C to 85°C
  • RoHS3: Compliant
  • Standard Package: 200 pieces
