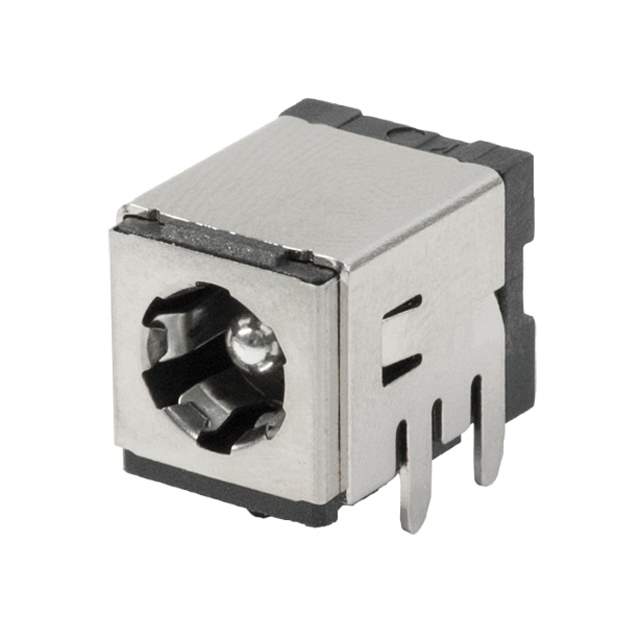

PJ-082BH

Name: PJ-082BH
Brand: CUI Inc.
SKU: 1334405
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-082BH
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet	PJ-082BH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Reel - TR
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter	0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts	2 Conductors, 2 Contacts
Internal Switch(s)	Does Not Contain Switch
Mounting	Through Hole, Right Angle
Termination	Solder
Shielding	Shielded
Features	Board Guide
Voltage - Rated	24VDC
Current Rating (Amps)	10 A
Mating Length/Depth	0.324" (8.23mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Temperature Range - Operating	-25°C ~ 85°C
Housing Material	Polyamide (PA6T), Nylon 6T
Contact Material	Brass, Copper Alloy
Body Color	Black
Base Product Number	PJ-082
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	045-0049R,PJ082BH,CP-082BH-ND,CP-082BHTR,CP-082BH,CP-082BHCT
Standard Package	350
Win Source Part Number	1334405-PJ-082BH
Ultra Librarian 3D Model	Ultra Librarian PJ-082BH CAD Model

Description

The CUI Devices 1334405-PJ-082BH is a male jack connector suitable for use in power connectors.

Shielded: true
Housing Material: polyamide and nylon 6T
Material Flammability Rating: UL94 V-0
Voltage Rating: 24VDC
Current Rating: 10A
Mounting: through hole and right angle
Mating Length: 0.324 inches
ID: 0.098 inches
OD: 0.256 inches
Operating Temperature: -25°C to 85°C
MSL Level: 1 (unlimited)
REACH Status: unaffected
