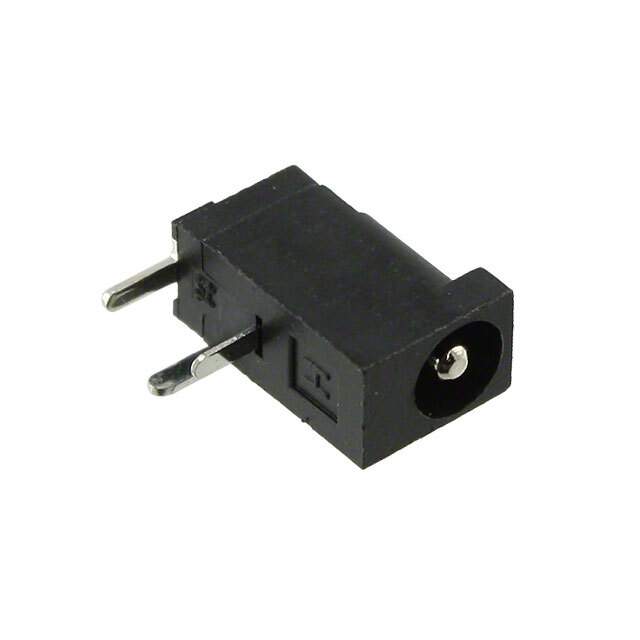

PJ-018

Name: PJ-018
Brand: CUI Inc.
SKU: 1351949
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PJ-018
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 1.7X4MM SOLDER / Power Barrel Connector Jack 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2 Through Hole, Right Angle
Datasheet	PJ-018 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Barrel Connectors - Power Connectors
Mfr	CUI Devices
Package	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	1.70mm ID (0.067") , 4.00mm OD (0.157") EIAJ-2
Actual Diameter	0.065" (1.65mm ID) , 0.165" (4.20mm OD)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Internal Switch(s)	Single Switch, Normally Closed
Mounting Type	Through Hole, Right Angle
Termination	Solder
Shielding	Unshielded
Voltage - Rated	24VDC
Current Rating (Amps)	2 A
Mating Length/Depth	0.260" (6.60mm)
Material Flammability Rating	UL94 V-0
Temperature Range - Operating	-25°C ~ 85°C
Contact Material - Plating	Tin
Housing Material	Polybutylene Terephthalate (PBT)
Contact Material	Brass, Copper Alloy
Body Color	Black
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351949-PJ-018
Ultra Librarian 3D Model	Ultra Librarian PJ-018 CAD Model

Description

The PJ-018 is a male jack connector manufactured by CUI Devices.

Conductors: 2
Contacts: 3
Switch: Single, Normally Closed
Voltage Rating: 24VDC
Current Rating: 2A
Size: 0.065" (1.65mm ID), 0.165" (4.20mm OD)
Mounting Type: Through-Hole, Right Angle
Temperature Range: -25°C ~ 85°C
