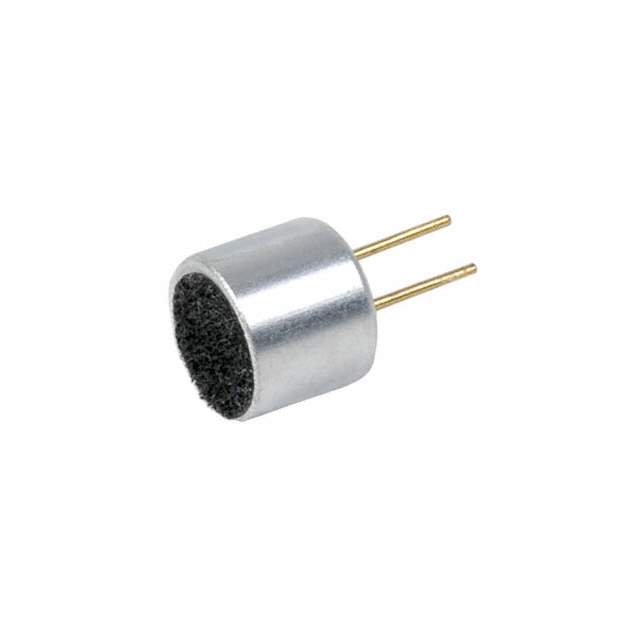

CMC-5044PF-A

Name: CMC-5044PF-A
Brand: CUI Inc.
SKU: 1323855
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CMC-5044PF-A
Manufacturer	CUI Inc.
Catalog	Microphones
Description	MIC COND ANALOG OMNI -44DB 6MM D / 100 Hz ~ 20 kHz Analog Microphone Electret Condenser 2 V ~ 10 V Omnidirectional (-44dB ±3dB @ 94dB SPL) PC Pins
Datasheet	CMC-5044PF-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Audio Products>Microphones
Manufacturer	CUI Devices
Packaging	Box
Type	Electret Condenser
Output Type	Analog
Direction	Omnidirectional
Frequency Range	100 Hz ~ 20 kHz
Sensitivity	-44dB ±3dB @ 94dB SPL
S/N Ratio	56dB
Impedance	2.2 kOhms
Voltage - Rated	2 V
Voltage Range	2 V ~ 10 V
Current - Supply	500 µA
Port Location	Top
Termination	PC Pins
Size / Dimension	0.236" Dia (6.00mm)
Height (Max)	0.205" (5.20mm)
Shape	Circular
Base Product Number	CMC-5044
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8518.10.8030
Other Part Number	CMC5044PFA,033-4008R,102-1725
Standard Package	80
Win Source Part Number	1323855-CMC-5044PF-A
Ultra Librarian 3D Model	Ultra Librarian CMC-5044PF-A CAD Model

Description

This electronic component is an electret condenser microphone with an omnidirectional direction and a sensitivity of -44dB ±3dB @ 94dB SPL.

Manufacturer: CUI Devices
Win Source Part Number: 1323855-CMC-5044PF-A
Packaging: box
Standard Package: 80
Voltage Rating: 2 V
Impedance: 2.2 kOhms
Frequency Range: 100 Hz to 20 kHz
Output Type: analog
Height: 0.205" (5.20mm)
Size/Dimension: 0.236" Dia (6.00mm)
REACH: unaffected
RoHS Status: ROHS3 compliant
