The Renesas 71V416S12PHGI is a high-speed, low-power asynchronous Static Random Access Memory (SRAM) device. It features a 4Mbit (256K x 16) organization, providing ample memory capacity for various embedded systems. The device is designed for applications demanding fast access times and minimal power consumption.

Applications

• Networking equipment (routers, switches)
• Industrial control systems
• Medical devices
• Test and measurement equipment
• Data acquisition systems
• Embedded processors with external memory requirements

Features

• Fast access time (12ns)
• Low power consumption
• 4Mbit (256K x 16) memory organization
• Single 3.3V power supply
• TTL-compatible inputs and outputs

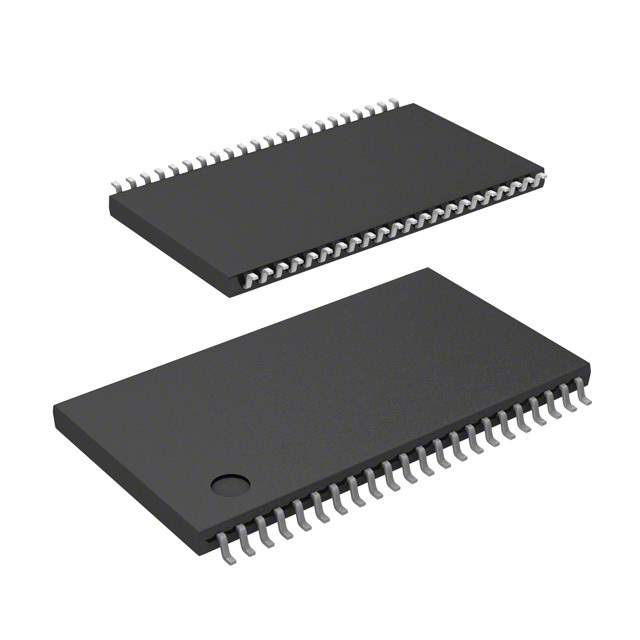

• Available in a 44-pin TSOP (Thin Small Outline Package)

Benefits

• Enables high-performance system operation
• Reduces overall system power consumption
• Provides sufficient memory capacity for demanding applications
• Simplifies system design
• Ensures compatibility with various logic families
• Facilitates easy integration into surface-mount PCBs

Additional Details

The 71V416S12PHGI SRAM utilizes advanced CMOS technology for optimal performance. It supports standard asynchronous memory read and write operations. The device is typically used in conjunction with a memory controller or processor with external memory interface. Considerations for PCB layout include proper power supply decoupling and signal termination to minimize noise and ensure signal integrity. The operating temperature range and other environmental specifications should be verified in the product datasheet. Proper handling procedures should be followed to prevent electrostatic discharge (ESD) damage.
