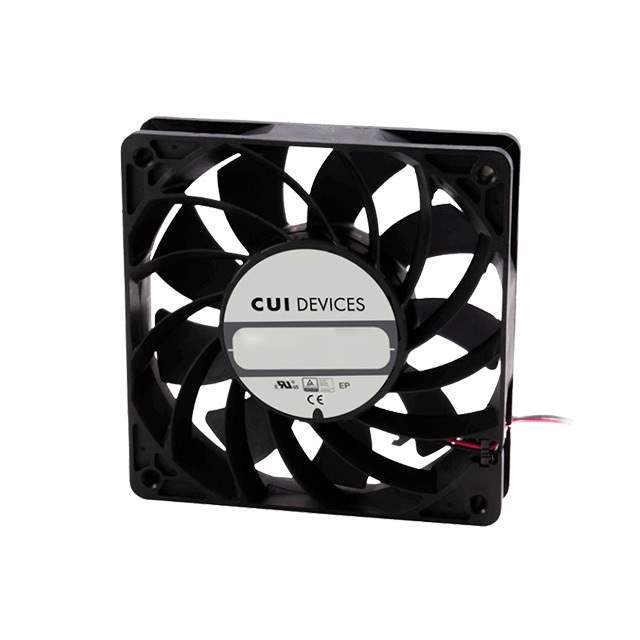

CFM-A225BF-253-577-22 Real Image
Same model may have multiple batches, images only for reference.

CFM-A225BF-253-577-22

Part No CFM-A225BF-253-577-22
Manufacturer CUI Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 120X25.4MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 169.5 CFM (4.75m³/min) 4 Wire Leads
Datasheet
CFM-A225BF-253-577-22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr CUI Devices
Series CFM-120BF
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 25.40mm
Air Flow 169.5 CFM (4.75m³/min)
Static Pressure 0.820 in H2O (204.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart, PWM Control, Speed Sensor (Tach)
Noise 57.8dB(A)
Power (Watts) 19.44 W
RPM 5300 RPM
Termination 4 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, cURus, TUV
Current Rating (Amps) 1.08A
Voltage Range 21.6 ~ 26.4VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1350378-CFM-A225BF-253-577-22
Ultra Librarian 3D Model Ultra Librarian CFM-A225BF-253-577-22 CAD Model

Description

The CFM-120BF series DC brushless fan from CUI Devices is a tubeaxial fan with a size/dimension of square - 120mm L x 120mm H.

  • Size / Dimension: Square - 120mm L x 120mm H
  • Voltage Rating: 24VDC
  • Power Rating: 19.44 W
  • Lifetime: 70000 Hrs @ 40°C
  • Voltage Range: 21.6 ~ 26.4VDC
  • Air Flow: 169.5 CFM (4.75m³/min)
  • Static Pressure: 0.820 in H2O (204.3 Pa)
  • Noise: 57.8dB(A)
  • RPM: 5300 RPM
  • Bearing Type: Ball
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • Frame Material: Polybutylene Terephthalate (PBT)
  • Blade Material: Polybutylene Terephthalate (PBT)
  • Features: Auto-Restart, PWM Control, Speed Sensor (Tach)
  • Standard Package: 30
