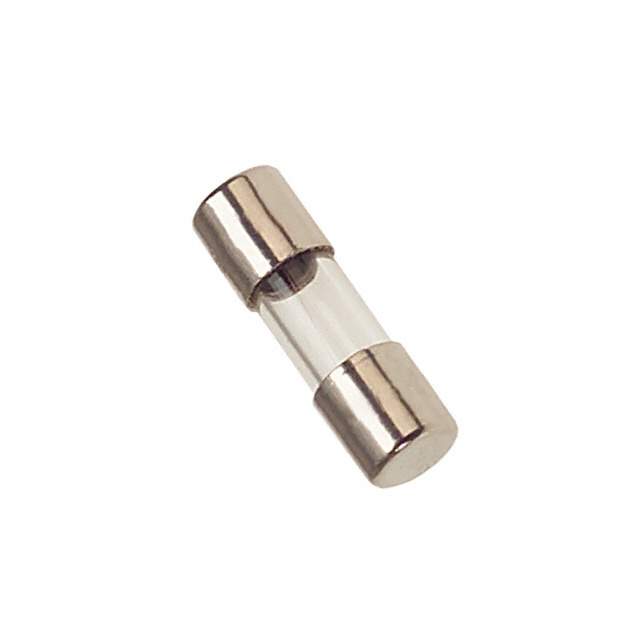

0225002.MXP Real Image
Same model may have multiple batches, images only for reference.

0225002.MXP

Part No 0225002.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 2A 250VAC 125VDC 2AG / 2 A 250 V AC 125 V DC Fuse Cartridge, Glass Holder 2AG, 5mm x 15mm
Datasheet
0225002.MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 2 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Case / Package 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 100A AC, 10kA DC
Melting I2t 1.5
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
DC Cold Resistance 0.0497 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Part Number 0225002.MXP-ND,0225002MXP,F4658,-0225002.MXP
Standard Package 1,000
Win Source Part Number 1334661-0225002.MXP
Ultra Librarian 3D Model Ultra Librarian 0225002.MXP CAD Model

Description

Littelfuse Inc. presents the 1334661-0225002.MXP electronic component.

  • Voltage Rating: 250 V AC and 125 V DC
  • Response Time: fast blow
  • Breaking Capacity: 100A AC and 10kA DC @ rated voltage
  • Melting I2t: 1.5
  • Size / Dimension: 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
  • DC Cold Resistance: 0.0497 Ohms
  • Standard Package: 1,000
  • Mounting Type: Holder
  • Temperature Range: -55°C to 125°C
  • Case / Package: 2AG, 5mm x 15mm
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8536.10.0020
  • Other Part Numbers: 0225002.MXP-ND, 0225002MXP, F4658, and -0225002.MXP
  • Approvals: CE, CSA, PSE, and UL
  • ROHS3 Compliant: Yes
