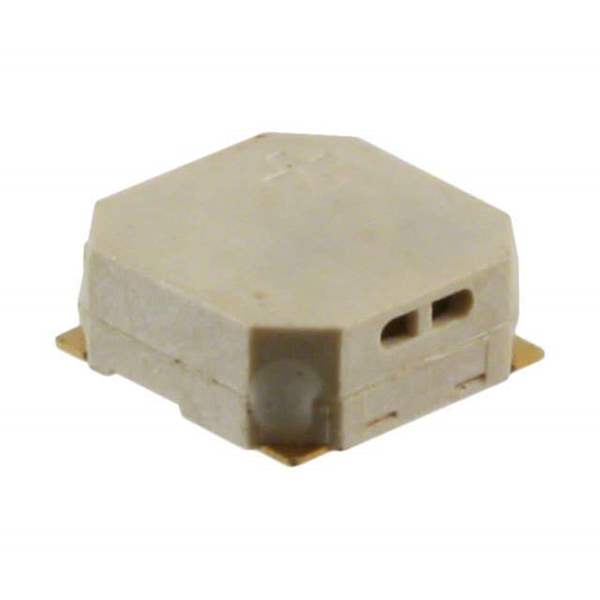

CSS-J4B20-SMT-TR CUI Inc.
Same model may have multiple batches, images only for reference.

CSS-J4B20-SMT-TR

Part No CSS-J4B20-SMT-TR
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 3-5V SMD
Datasheet
CSS-J4B20-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Packaging Reel - TR
Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage Rating 3.6V
Voltage Range 3 to 5V
Frequency 2.73kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 90dB @ 3.6V, 5cm
Operating Supply Current 80mA
Port Location Side
Temperature Range - Operating -30°C to 70°C
Mounting SMD (SMT)
Termination Solder Pads
Height - Seated (Max) 0.146" (3.70mm)
Win Source Part Number 124741-CSS-J4B20-SMT-TR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CSS-J4B20-SMT-TR CAD Model

Description

Description

The CSS-J4B20-SMT-TR is a premium electronic component engineered for seamless integration into modern devices. Its sleek surface mount technology (SMT) ensures easy assembly and optimal performance.

Features and Benefits

  • Surface mount technology for easy assembly
  • Low profile design suitable for compact devices
  • High-speed performance for demanding applications

Applications

  • Wearable technology
  • Network equipment
  • Medical devices
  • Computer peripherals
Additional Details:
  • Meets stringent industry regulations
  • Available in bulk quantities
