Same model may have multiple batches, images only for reference.

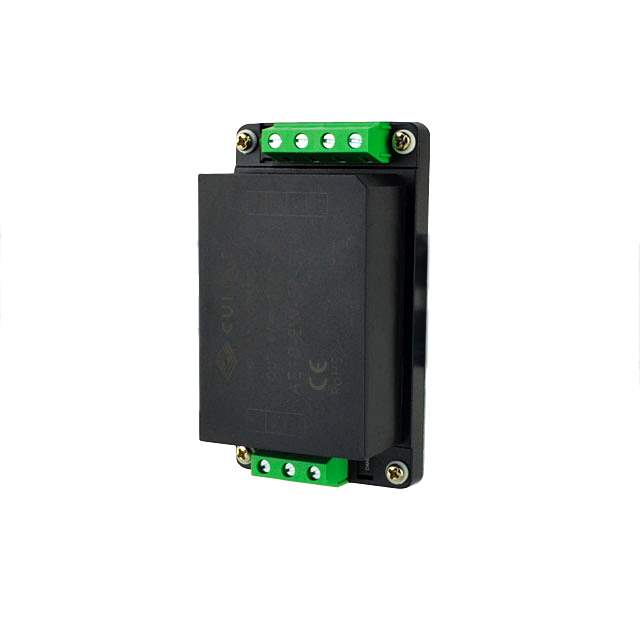

AE10-EW-S24-DIN Real Image
Same model may have multiple batches, images only for reference.

AE10-EW-S24-DIN

Part No AE10-EW-S24-DIN
Manufacturer CUI Inc.
Catalog Custom Parts (0 - A)
Description DC/DC CONVERTER 24V 10W  /
Datasheet
AE10-EW-S24-DIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr CUI Inc.
Series AE10-EW-DIN (10W)
Package Tray
Input Type DC
Number of Outputs 1
DC Voltage - Input (Min) 100V
DC Voltage - Input (Max) 1000V
Voltage - Output 1 24V
Current - Output (Max) 420mA
Power (Watts) 10W
Voltage - Isolation 4 kV
Efficiency 80%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Dimension 3.78" L x 2.13" W x 1.44" H (96.1mm x 54.0mm x 36.6mm)
Approval Agency CE
Minimum Load Required No
Base Product Number AE10-EW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 102-4499
Standard Package 12
Win Source Part Number 1117352-AE10-EW-S24-DIN
Ultra Librarian 3D Model Ultra Librarian AE10-EW-S24-DIN CAD Model

Description

The AE10-EW-DIN (10W) series industrial DIN rail power supply from CUI Inc. is designed for use in DC input applications.

  • Voltage Isolation: 4 kV
  • Maximum Output Current: 420mA
  • Efficiency: 80%
  • Output Voltage: 24V
  • Mounting: Through Hole
  • Package: Tray
  • Package Size: 3.78" L x 2.13" W x 1.44" H (96.1mm x 54.0mm x 36.6mm)
  • Operating Temperature: -40°C and 70°C (with derating)
  • Input Voltage Range: 100V and 1000V DC
