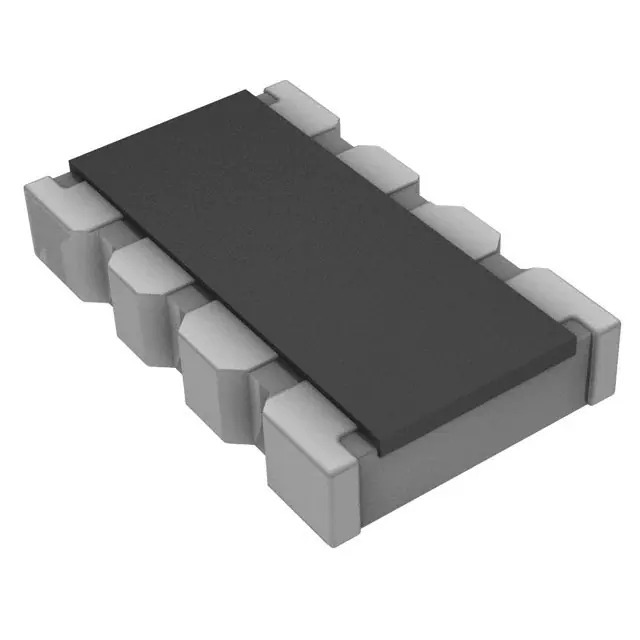

Same model may have multiple batches, images only for reference.
742X083102JP CTS Resistor Products
Same model may have multiple batches, images only for reference.

742X083102JP

Part No 742X083102JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 1K OHM 1206
Datasheet
742X083102JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 742
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±5%
Number of Resistors 4
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 8
Power Per Element 63mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200, DDR SDRAM, DRAM, MDDR
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number 742X083
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1374155-742X083102JP
Ultra Librarian 3D Model Ultra Librarian 742X083102JP CAD Model

Description

The 1374155-742X083102JP is a resistor network array manufactured by CTS Resistor Products.

  • Series: 742
  • Mounting Type: surface mount
  • Package Type: 1206 (3216 Metric)
  • Resistance: 1k ohm
  • Tolerance: ±5%
  • Number of Resistors: 4
  • Number of Pins: 8
  • Operating Temperature: -55°C to 125°C
  • Applications: automotive AEC-Q200, DDR SDRAM, DRAM, and MDDR
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Max Seated Height: 0.028" (0.70mm)
  • REACH: unaffected
  • ECCN: EAR99
  • Temperature Coefficient: ±200ppm/°C
