Same model may have multiple batches, images only for reference.

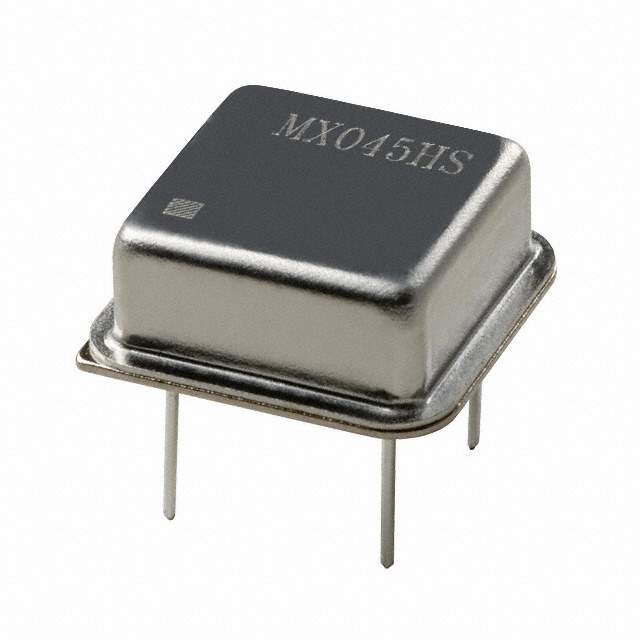

MXO45HST-3C-16M000000 Real Image
Same model may have multiple batches, images only for reference.

MXO45HST-3C-16M000000

Part No MXO45HST-3C-16M000000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Datasheet
MXO45HST-3C-16M000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr CTS-Frequency Controls
Series MXO45HS
Package Tray
Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 5V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 26mA
Mounting Type Through Hole
Package / Case 8-DIP, 4 Leads (Half Size, Metal Can)
Dimension 0.520" L x 0.520" W (13.20mm x 13.20mm)
Height - Seated (Max) 0.240" (6.10mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1316153-MXO45HST-3C-16M000000
Ultra Librarian 3D Model Ultra Librarian MXO45HST-3C-16M000000 CAD Model

Description

The CTS-Frequency Controls 1316153-MXO45HST-3C-16M000000 is a 16 MHz XO oscillator that belongs to the MXO45HS series.

  • Frequency: 16 MHz
  • Series: MXO45HS
  • Package: 8-DIP, 4 Leads (Half Size, Metal Can)
  • Height: 0.240 inches
  • Operating Temperature Range: -20°C to 70°C
  • Current Supply: 26mA
  • Frequency Stability: ±50ppm
  • Enable/Disable Function: Yes
  • Output: HCMOS, TTL
