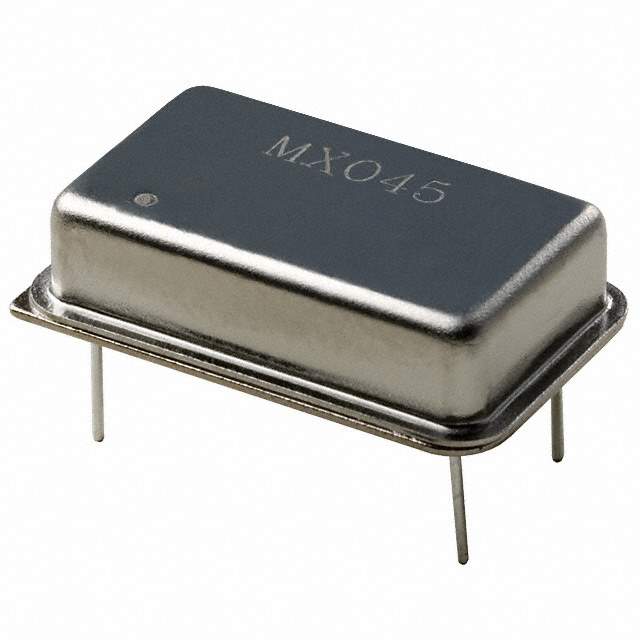

MXO45-3C-10M0000 Real Image
Same model may have multiple batches, images only for reference.

MXO45-3C-10M0000

Part No MXO45-3C-10M0000
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description OSC XO 10.000MHZ HCMOS TTL PIN / Oscillator XO 10MHz ±50ppm 50pF HCMOS/TTL 55% 5V 4-Pin Metal DIP Thru-Hole Carton/Tray/Tube
Datasheet
MXO45-3C-10M0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer CTS-Frequency Controls
Series MXO45
Packaging Tray
Type XO (Standard)
Frequency 10MHz
Output HCMOS, TTL
Operating Supply Voltage 5V
Frequency Stability ±50ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 26mA
Mounting Style Through Hole
Package 14-DIP, 4 Leads (Full Size, Metal Can)
Dimension 0.819" L x 0.520" W (20.80mm x 13.20mm)
Height - Seated (Maximum) 0.201" (5.10mm)
Current - Supply (Disable) (Maximum) 10μA
Win Source Part Number 790401-MXO45-3C-10M0000
Popularity Medium
Supply and Demand Status Balance
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MXO45-3C-10M0000 CAD Model

Description

The CTS-Frequency Controls MXO45 series XO (standard) oscillator has a frequency of 10MHz.

  • Mounting: Through-Hole
  • Operating Temperature Range: -20°C to 70°C
  • Package: 14-DIP, 4 leads (full size, metal can)
  • Dimension: 0.819" L x 0.520" W (20.80mm x 13.20mm)
  • Height Seated (Maximum): 0.201" (5.10mm)
  • Output: HCMOS, TTL
  • Frequency Stability: ±50ppm
  • Alternative Parts: EP1145TPDL-10.000M, EPF1145ETTPDC-10.000M, EPF1145ETTPDL-10.000M, EP1145ETTPDC-10.000M
  • ECCN: EAR99
  • Estimated EOL Date: 2022
  • Halogen-Free Compliant: Yes
