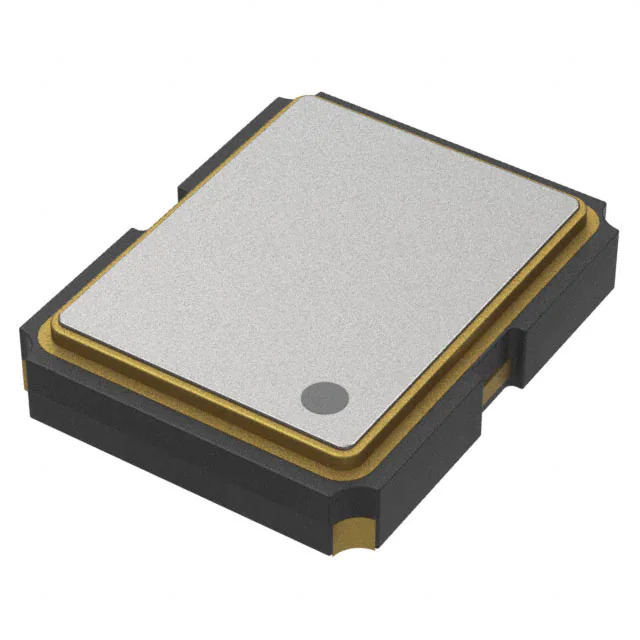

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series CA20
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 1.8V
Frequency Stability ±30ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 105°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 15mA
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1378109-CA20C2004GMT
Ultra Librarian 3D Model Ultra Librarian CA20C2004GMT CAD Model

Description

The 1378109-CA20C2004GMT is a 20 MHz XO (Standard) oscillator from CTS-Frequency Controls.

  • Frequency: 20 MHz
  • Type: XO (Standard)
  • Mounting Type: Surface Mount
  • Package Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.031" (0.80mm)
  • Operating Temperature: -40°C to 105°C
  • Frequency Stability: ±30ppm
  • Voltage Supply: 1.8V
  • Maximum Supply Current: 15mA
  • Output: HCMOS and TTL compatible
  • Functionality: Enable/Disable
  • Applications: Communication systems and computer peripherals
