Same model may have multiple batches, images only for reference.

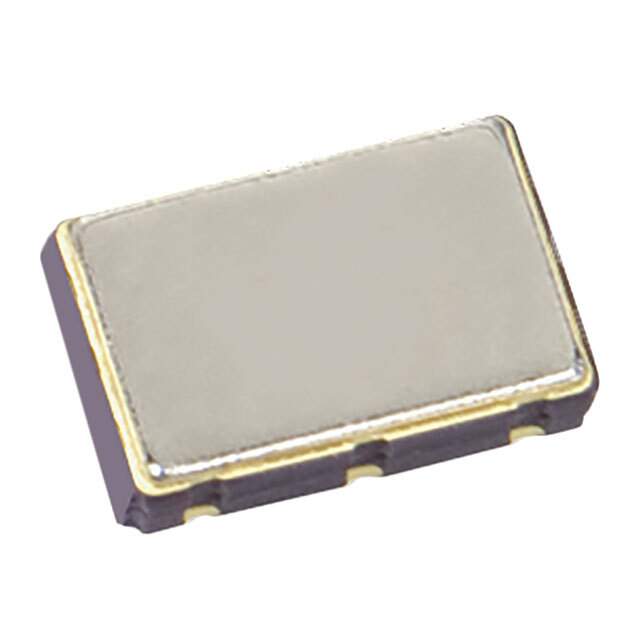

655L15623I2T Real Image
Same model may have multiple batches, images only for reference.

655L15623I2T

Part No 655L15623I2T
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 156.2500MHZ LVDS SMD / 156.25 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Datasheet
655L15623I2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series 655
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 66mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.055" (1.40mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1350138-655L15623I2T
Ultra Librarian 3D Model Ultra Librarian 655L15623I2T CAD Model

Description

The CTS-Frequency Controls 1350138-655L15623I2T is a 156.25 MHz, ±50ppm frequency stability oscillator with an enable/disable function. It belongs to the 655 series and is a standard XO type oscillator.

  • Frequency: 156.25 MHz
  • Frequency Stability: ±50ppm
  • Function: Enable/Disable
  • Series: 655
  • Type: Standard XO
  • Package / Case: 6-SMD, No Lead
  • Mounting Type: Surface Mount
  • Height: 0.055" (1.40mm)
  • Size / Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Current Supply: 66mA
  • Voltage Supply: 2.5V
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
  • Manufacturer: CTS-Frequency Controls
