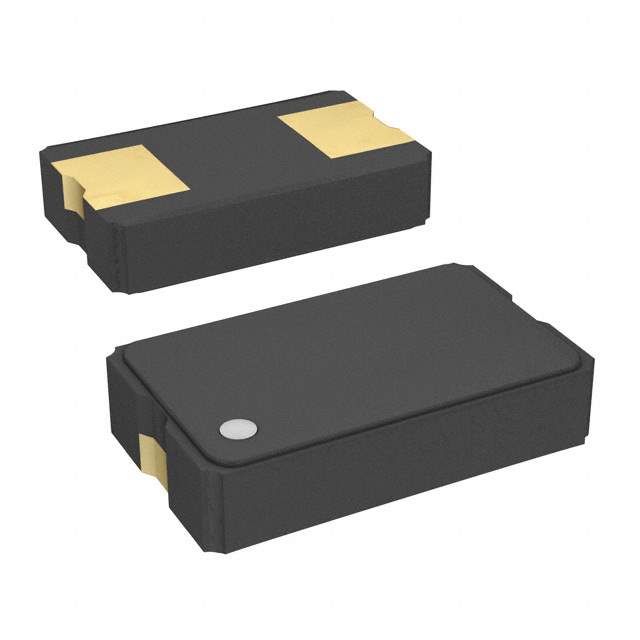

445C33D24M00000 Real Image
Same model may have multiple batches, images only for reference.

445C33D24M00000

Part No 445C33D24M00000
Manufacturer CTS-Frequency Controls
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD  /  24 MHz ±30ppm Crystal 18pF 40 Ohms 2-SMD, No Lead
Datasheet
445C33D24M00000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr CTS-Frequency Controls
Series 445
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 445C33D24M00000-ND,CTX1433CT,CTX1433DKR,CTX1433TR
Standard Package 1,000
Win Source Part Number 1036035-445C33D24M00000
Ultra Librarian 3D Model Ultra Librarian 445C33D24M00000 CAD Model

Description

The CTS-Frequency Controls 1036035-445C33D24M00000 is a 24 MHz MHz Crystal with a load capacitance of 18pF and an ESR (Equivalent Series Resistance) of 40 Ohms.

  • Load Capacitance: 18pF
  • ESR: 40 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Package: Tape & reel
  • Size: 2-SMD, No Lead
  • Temperature Range: -20°C to 70°C
This crystal is suitable for use in various electronic applications and is currently in EAR99 status.
