Same model may have multiple batches, images only for reference.

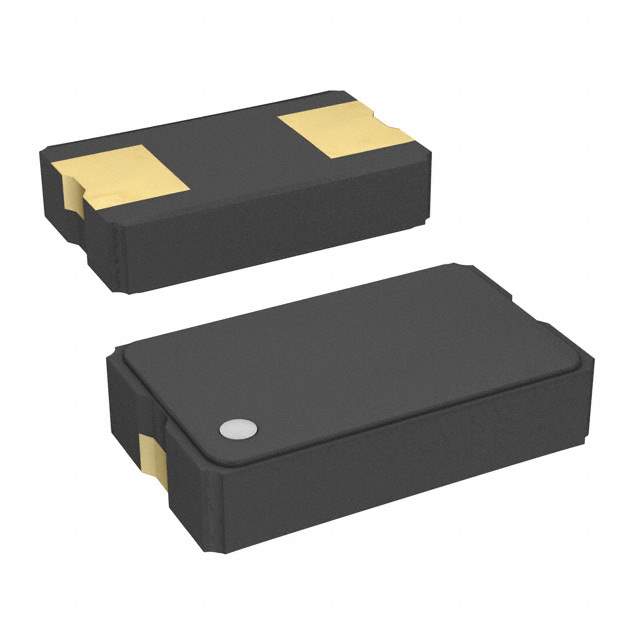

445C25D30M00000 Real Image
Same model may have multiple batches, images only for reference.

445C25D30M00000

Part No 445C25D30M00000
Manufacturer CTS-Frequency Controls
Catalog Crystals
Description CRYSTAL 30.0000MHZ 18PF SMD / 30 MHz ±20ppm Crystal 18pF 30 Ohms 2-SMD, No Lead
Datasheet
445C25D30M00000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr CTS-Frequency Controls
Series 445
Package Tape & Reel
Type MHz Crystal
Frequency 30 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
California Prop 65 Warning Information
Win Source Part Number 1350143-445C25D30M00000
Ultra Librarian 3D Model Ultra Librarian 445C25D30M00000 CAD Model

Description

The 445C25D30M00000 is a high-quality MHz crystal from the 445 series of crystals, oscillators, and resonators.

  • Frequency: 30 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 30 Ohms
  • Mode: Fundamental
  • Package: Surface Mount
  • Packaging: Tape and Reel
  • Size: 0.197 inches in length and 0.126 inches in width
  • Height: 0.053 inches
  • Standard Package: 1,000
  • Operating Temperature Range: -20°C to 70°C
