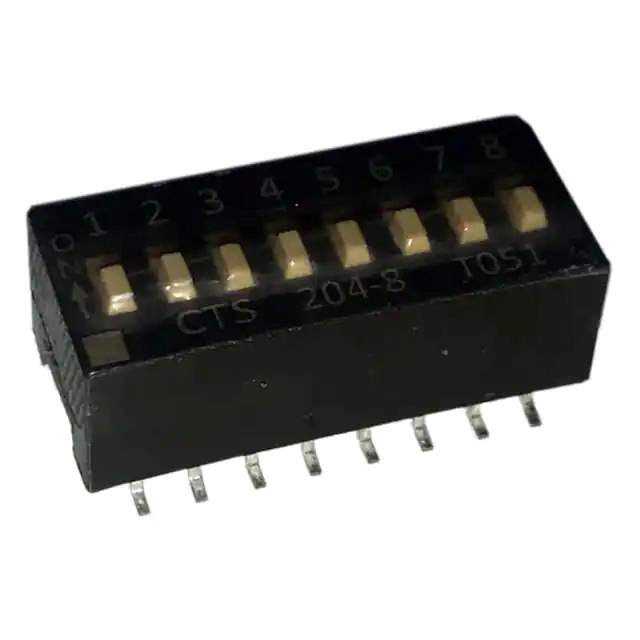

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 204
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.394" (10.00mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 0.886" (22.50mm)
Electrical Life 5,000 Cycles
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 867420-204-8ST
Ultra Librarian 3D Model Ultra Librarian 204-8ST CAD Model

Description

The 867420-204-8ST is a DIP switch from the 204 series.

  • Series: 204
  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Terminals: Epoxy Sealed with Tape Seal
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Height Above Board: 0.394" (10.00mm)
  • Length: 0.886" (22.50mm)
  • Packaging: Tube
  • Circuit: SPST
  • Actuator Type: Slide
  • Voltage Rating: 24VDC
  • Electrical Life: 5,000 Cycles
  • Temperature Range: -55°C to 85°C
