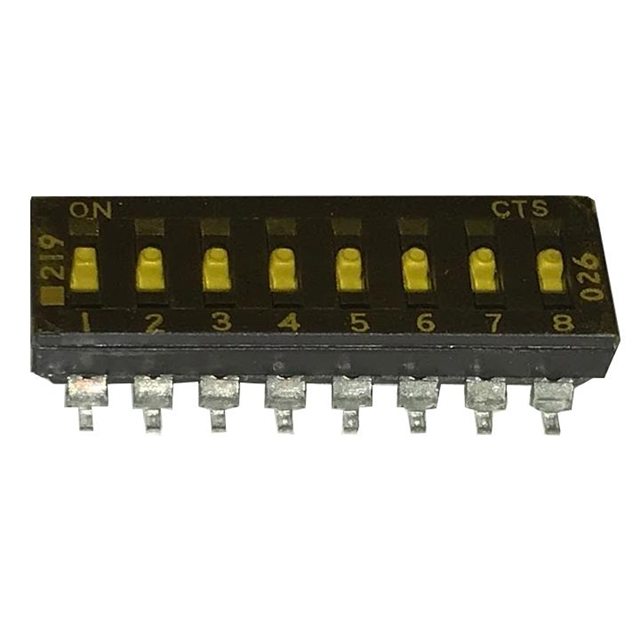

219-8LPST

Part No 219-8LPST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description Surface Mount DIP Switch — Auto Placeable | SWITCH SLIDE DIP SPST 100MA 20V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer CTS Electrocomponents
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.160" (4.06mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.858" (21.80mm)
Electrical Life 2,000 Cycles
Manufacturer Pack Quantity 25
MSL Level Not Applicable
Win Source Part Number 1123019-219-8LPST
Manufacturer Homepage www.ctscorp.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 219-8LPST CAD Model

Description

The CTS Electrocomponents 219 series slide switch is a high-quality, versatile switch that is ideal for use in a wide range of electronic devices. This switch has eight SPST positions and a gull wing termination style that is suitable for surface mount installation. It is supplied in a tube package and has a quantity of 25 per package. The switch has a voltage rating of 20VDC and a current rating of 100mA. It has a temperature range of -55 degrees Celsius to 85 degrees Celsius and is made from high-quality materials that ensure a long life. The switch is suitable for use in a variety of applications that require precise control of switching.
