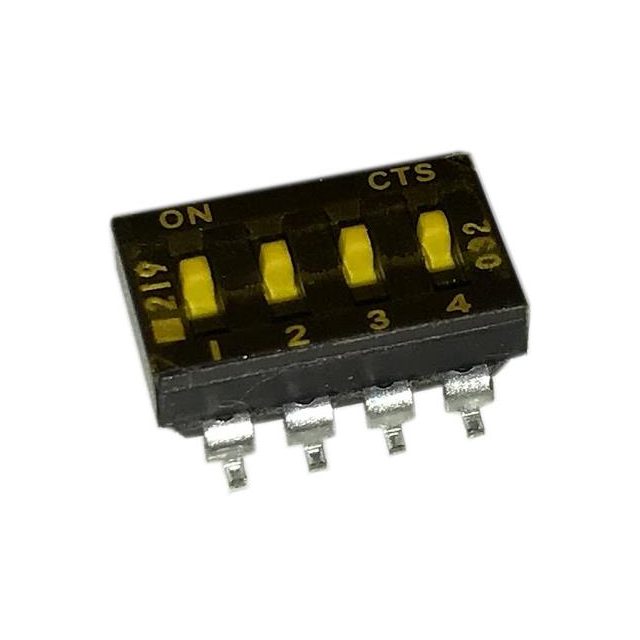

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Manufacturer CTS Electrocomponents
Packaging Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.458" (11.63mm)
Electrical Life 2,000 Cycles
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 219004MST,2194MST,Q4041470B,CT2194MST-NDR,CT2194MST
Standard Package 45
Win Source Part Number 1323839-219-4MST
Ultra Librarian 3D Model Ultra Librarian 219-4MST CAD Model

Description

The CTS Electrocomponents 1323839-219-4MST is a surface mount device (SMD) dip switch.

  • Positions: Four
  • Pitch: 0.100 inches (2.54mm), Full
  • Termination Style: Gull Wing
  • Terminals: Epoxy-Sealed
  • Feature: Tape Seal
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 20VDC
  • Electrical Life: 2,000 cycles
  • Actuator Level: Raised
  • Washable: Yes
  • Category Application: Switches
  • Operating Temperature Range: -55°C to 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 100mA
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.50.9065
  • ROHS: ROHS3 Compliant
