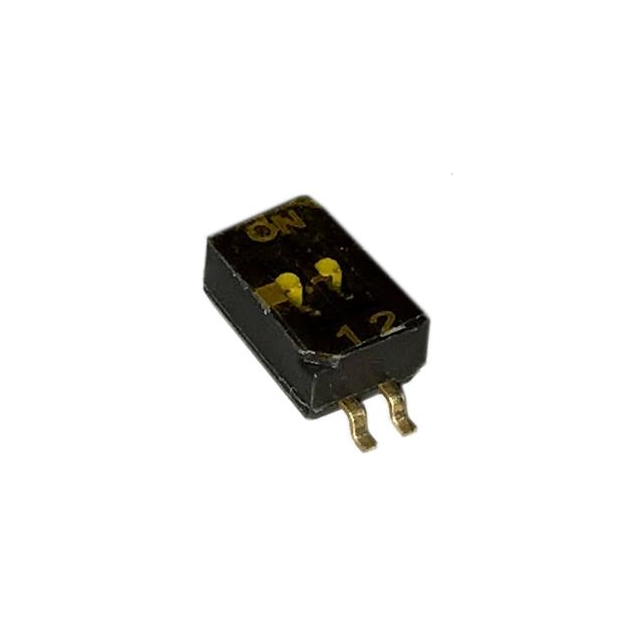

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer CTS Electrocomponents
Packaging Reel
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.104" (2.65mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.146" (3.71mm)
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123014-218-2LPSTR
Manufacturer Homepage www.ctscorp.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 218-2LPSTR CAD Model

Description

The CTS Electrocomponents Switch is a high-quality electronic component designed for a wide range of applications.

  • Win Source Part Number: 1123014-218-2LPSTR
  • Packaging: reel
  • Positions: 2
  • Pitch: 0.050" (1.27mm), Half
  • Termination Style: gull wing
  • Features: epoxy sealed terminals and tape seal
  • Contact Finish: gold
  • Contact Material: beryllium copper
  • Voltage Rating: 24VDC
  • Height above board: 0.104" (2.65mm)
  • Length: 0.146" (3.71mm)
  • Mounting Style: SMD
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Electrical Life: 1,000 cycles
  • Actuator Level: flush, recessed
  • Switch: washable
  • Popularity: medium
  • Temperature Range for Operating: -55°C to 85°C
