STEVAL-ILB010V1 - LED Driver Evaluation Board from STMicroelectronics

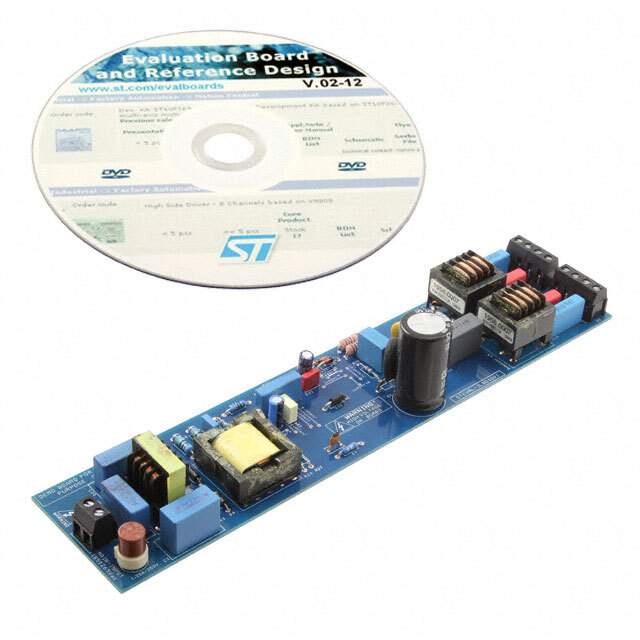

The STEVAL-ILB010V1 is an advanced evaluation board designed by STMicroelectronics, a leader in the semiconductor industry. This board is specifically tailored for testing and prototyping with the L6562A-based 25 W resonant converter, which is a state-of-the-art energy-efficient LED driver for lighting applications.

This versatile evaluation board is an excellent tool for engineers and designers looking to explore the capabilities of the L6562A controller in a resonant topology, which offers benefits such as reduced electromagnetic interference (EMI), high efficiency, and a compact form factor. The STEVAL-ILB010V1 is suitable for a wide array of applications, including but not limited to indoor and outdoor LED lighting, architectural lighting, and LED backlighting systems.

The board is equipped with a variety of features that make it a robust platform for development. It includes overvoltage, overcurrent, and overtemperature protection, ensuring the longevity and reliability of both the board and the LEDs it drives. The STEVAL-ILB010V1 also supports dimming control, allowing for adjustable light intensity to cater to different environmental needs or user preferences.

Designed with practicality in mind, the STEVAL-ILB010V1 offers easy-to-use connectors for quick setup and integration into existing lighting systems. Its layout is optimized for thermal management, ensuring that the board operates within safe temperature limits during extended periods of use.

Specifications for the STEVAL-ILB010V1 include:

• Input voltage range: 90 to 265 VAC
• Output power up to 25 W
• High power factor and low THD (Total Harmonic Distortion)
• Efficiency greater than 90%
• Dimming control input
• Protection features: Overvoltage, Overcurrent, Overtemperature

Overall, the STEVAL-ILB010V1 evaluation board is a comprehensive solution for those looking to design and test high-performance LED lighting systems with advanced features and protections. Its compatibility with a wide range of AC input voltages and its high efficiency make it a versatile choice for global applications in the ever-evolving LED lighting market.
