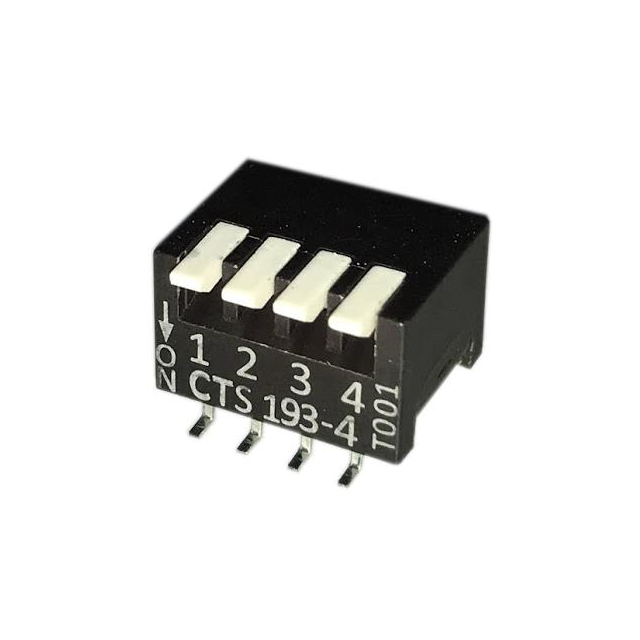

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer CTS Electrocomponents
Packaging Reel
Circuit SPST
Number of Positions 4
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.359" (9.12mm)
Mounting Style Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features Epoxy Sealed Terminals
Temperature Range - Operating -40°C ~ 85°C
Body Material Plastic
Length 0.486" (12.34mm)
Electrical Life 7,000 Cycles
Manufacturer Pack Quantity 350
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809358-193-4MSR
Ultra Librarian 3D Model Ultra Librarian 193-4MSR CAD Model

Description

The 193-4MSR is an electronic component manufactured by CTS Electrocomponents. The Win Source Part Number for this product is 809358-193-4MSR.

  • Voltage Rating: 24VDC
  • Current Rating: 50mA
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Actuator Type: Piano
  • Circuit: SPST
  • Operating Temperature: -40°C to 85°C
