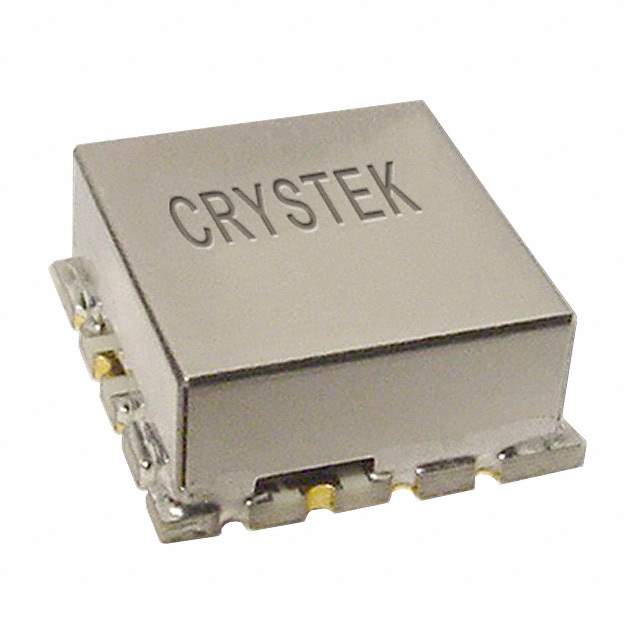

CVCO55CC-1277-1433 Real Image
Same model may have multiple batches, images only for reference.

CVCO55CC-1277-1433

Part No CVCO55CC-1277-1433
Manufacturer Crystek Corporation
Catalog Oscillators
Description VCO 1355MHZ 0.5-15V 12.7X12.7MM / 1355MHz Center Frequency 0.5 V ~ 15 V Voltage Controlled Oscillator 3 ±2 dBm -20 2nd Harmonic Typ (dBc)
Datasheet
CVCO55CC-1277-1433 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>VCOs (Voltage Controlled Oscillators)
Mfr Crystek Corporation
Series CVCO55
Package Strip
Frequency Range 1277 ~ 1433MHz
Frequency - Center 1355MHz
Voltage - Supply 8V
Tuning Voltage (VDC) 0.5 V ~ 15 V
2nd Harmonic, Typ (dBc) -20
Icc Max 25mA (Typ)
Pushing (MHz/V) 0.5
Power (dBm) 3 ±2
Phase Noise Typ (dBc/Hz) -115
Temperature Range - Operating -30°C ~ 70°C
Package / Case 16-QFN, Variant
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.220" (5.59mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 744-1482,CVCO55CC12771433
Standard Package 1
Win Source Part Number 1227202-CVCO55CC-1277-1433
Ultra Librarian 3D Model Ultra Librarian CVCO55CC-1277-1433 CAD Model

Description

The Crystek Corporation voltage-controlled oscillator (VCO) with Win Source Part Number 1227202-CVCO55CC-1277-1433 is a strip packaged VCO with a frequency range of 1277 ~ 1433MHz and a tuning voltage of 0.5 V ~ 15 V. It has a frequency center of 1355MHz and a pushing of 0.5 MHz/V.

  • Operating Temperature: -30°C to 70°C
  • Height: 0.220" (5.59mm)
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
