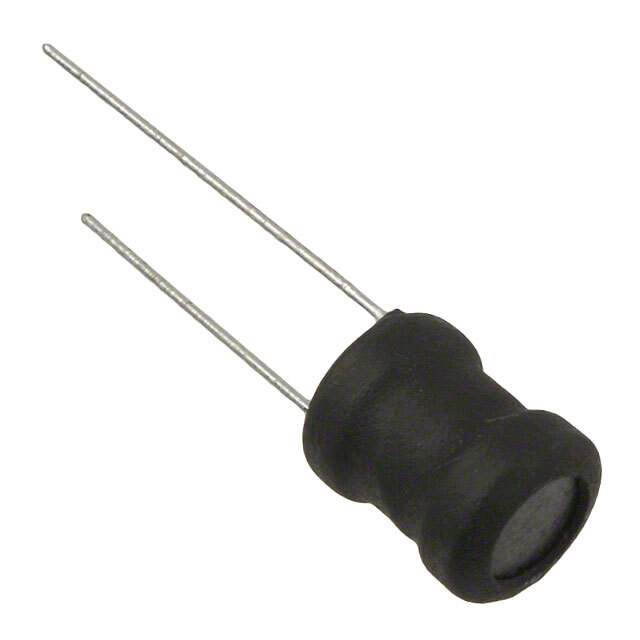

Same model may have multiple batches, images only for reference.

RLB0914-390KL

Name: RLB0914-390KL
Brand: Bourns Inc.
SKU: 1327823
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RLB0914-390KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 39UH 1.6A 130 MOHM TH / 39 µH Unshielded Drum Core, Wirewound Inductor 1.6 A 130mOhm Max Radial, Vertical Cylinder
Datasheet	RLB0914-390KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Bourns Inc.
Packaging	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	39 µH
Tolerance	±10%
Current Rating (Amps)	1.6 A
Current - Saturation (Isat)	3.4A
Shielding	Unshielded
DC Resistance (DCR)	130mOhm Max
Q @ Freq	30 @ 2.52MHz
Frequency - Self Resonant	7MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	2.52 MHz
Mounting	Through Hole
Case / Package	Radial, Vertical Cylinder
Size / Dimension	0.343" Dia (8.70mm)
Height - Seated (Max)	0.512" (13.00mm)
Base Product Number	RLB0914
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	200
Win Source Part Number	1327823-RLB0914-390KL
Ultra Librarian 3D Model	Ultra Librarian RLB0914-390KL CAD Model

Alternative Products

Description

The RLB0914-390KL is a fixed inductor from Bourns Inc.

Core Type: Drum core, wirewound
Package: Radial, vertical cylinder
Inductance: 39 µH
Tolerance: ±10%
DC Resistance: 130mOhm Max
Current Rating: 1.6 A
Q @ Freq: 30 @ 2.52MHz
Frequency Self-Resonant: 7MHz
Packaging: Bulk
Standard Package: 200
Operating Temperature: -40°C to 105°C
REACH: Unaffected
ECCN: EAR99
ROHS3 Compliant: Yes
