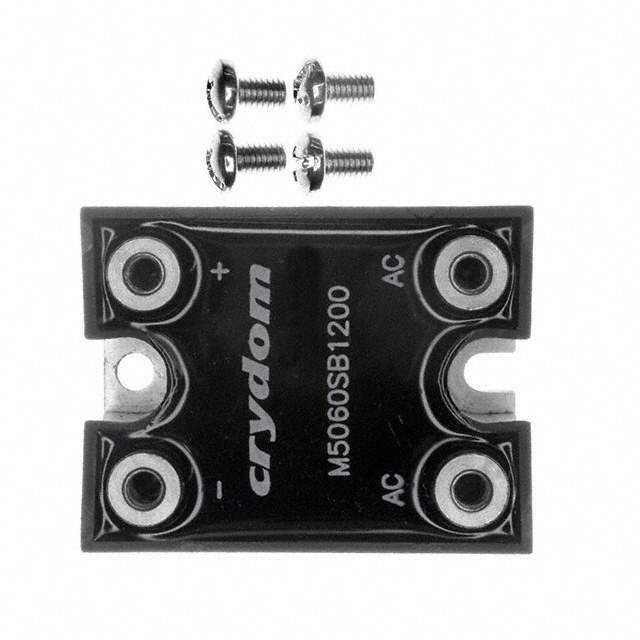

M5060SB1200 Real Image
Same model may have multiple batches, images only for reference.

M5060SB1200

Part No M5060SB1200
Manufacturer Crydom Co.
Catalog Bridge Rectifiers
Description 60-100Amp Diode Modules | BRIDGE RECT 1P 1.2KV 60A MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sensata-Crydom
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1.2kV
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Maximum) at If 1.35V at 50A
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Chassis Mount
Manufacturer Package Module
Supplier Device Package Module
Manufacturer Pack Quantity 15
MSL Level Not Applicable
Win Source Part Number 1210686-M5060SB1200
Manufacturer Homepage www.cynergy3.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian M5060SB1200 CAD Model

Description

The Sensata-Crydom 1210686-M5060SB1200 is a single-phase diode module used in various applications.

  • Maximum Voltage Rating: 1.2kV
  • Current Rating: 60A
  • Applications: Suitable for high power applications
  • Diode Type: Single phase
  • Package Type: Module
  • Mounting Style: Chassis mount
  • Operating Temperature Range: -40°C to 125°C
  • Manufacturer Pack Quantity: 15
