Same model may have multiple batches, images only for reference.

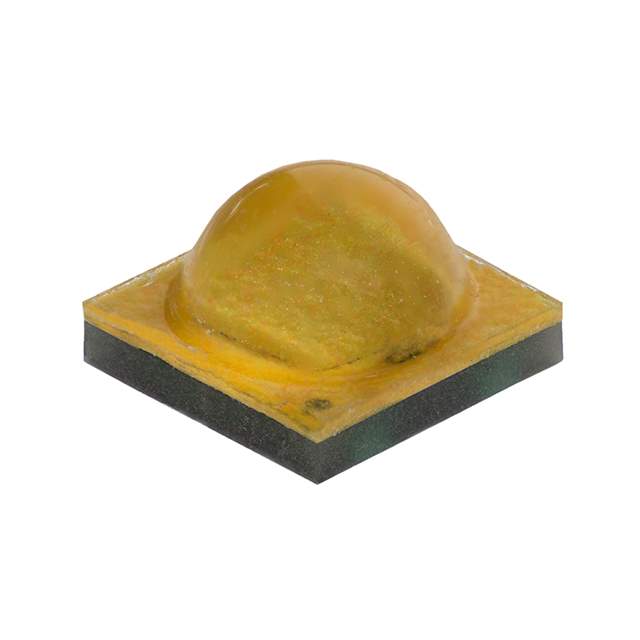

XPGDWT-B1-0000-00LE5 Real Image
Same model may have multiple batches, images only for reference.

XPGDWT-B1-0000-00LE5

Part No XPGDWT-B1-0000-00LE5
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP XPG3 NEUTRAL WHITE SMD / LED Lighting series White, Neutral 4000K 2.73V 350mA 125° 1414 (3535 Metric)
Datasheet
XPGDWT-B1-0000-00LE5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series Xlamp® XP-G3
Package Tape & Reel
Color White, Neutral
CCT (K) 4000K
Flux @ 85°C, Current - Test 168lm (164lm ~ 172lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.73V
Lumens/Watt @ Current - Test 176 lm/W
CRI (Color Rendering Index) 70
Current - Max 2A
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Dimension 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) 0.094" (2.39mm)
Thermal Resistance of Package 3°C/W
Base Product Number XPGDWT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names XPGDWT-B1-0000-00LE5DKR,XPGDWT-B1-0000-00LE5TR,XPGDWT-B1-0000-00LE5CT
Standard Package 1,000
Win Source Part Number 1000832-XPGDWT-B1-0000-00LE5
Ultra Librarian 3D Model Ultra Librarian XPGDWT-B1-0000-00LE5 CAD Model

Description

The Xlamp® XP-G3 is a white, neutral LED lighting component that is ideal for optoelectronics applications.

  • Maximum Seated Height: 0.094 inches
  • Mounting Type: SMD (SMT)
  • Maximum Current: 2A
  • Viewing Angle: 125 degrees
  • Voltage-Forward (Vf): 2.73V
  • Current Test: 350mA
  • CCT (K): 4000K
  • Flux @ 85°C, Current - Test: 168lm (164lm ~ 172lm)
  • Lumens/Watt @ Current - Test: 176 lm/W
  • CRI (Color Rendering Index): 70
  • Thermal Resistance: 3°C/W
  • Package/Case: 1414 (3535 Metric)
  • Supplier: CreeLED, Inc.
