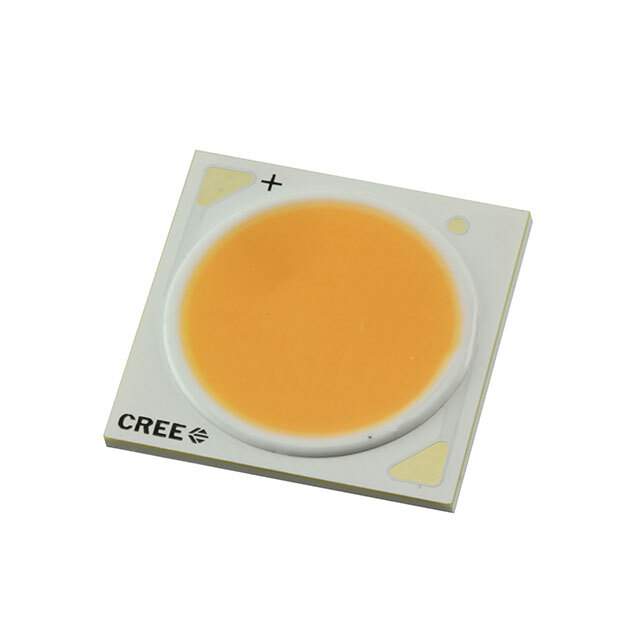

CXA1507-0000-000N00F230H Real Image
Same model may have multiple batches, images only for reference.

CXA1507-0000-000N00F230H

Part No CXA1507-0000-000N00F230H
Manufacturer CreeLED, Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1507 WARM WHT SQUARE / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
CXA1507-0000-000N00F230H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr CreeLED, Inc.
Series XLamp® CXA1507
Package Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 2-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 705lm (680lm ~ 730lm)
Current - Test 200mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 95 lm/W
Current - Max 375mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 15.85mm L x 15.85mm W
Height 1.70mm
Light Emitting Surface (LES) 8.90mm Dia
Lens Type Flat
Base Product Number CXA1507
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 100
Win Source Part Number 998455-CXA1507-0000-000N00F230H
Ultra Librarian 3D Model Ultra Librarian CXA1507-0000-000N00F230H CAD Model

Description

The CXA1507-0000-000N00F230H from CreeLED, Inc. is a chip on board (COB) LED with a square configuration.

  • Color: White and Warm
  • Viewing Angle: 115°
  • Voltage Forward (Vf): 37 V
  • Maximum Current: 375 mA
  • CCT: 3000K 2-Step MacAdam Ellipse
  • CRI: 80
  • Luminous Flux: 705 lm (680lm ~ 730lm)
  • Lumens/Watt: 95 lm/W @ current test of 200mA
  • LES Diameter: 8.90mm
  • Height: 1.70mm
  • Package: Tray
  • Standard Package: 100
  • REACH: Unaffected
  • ECCN: EAR99
