Same model may have multiple batches, images only for reference.

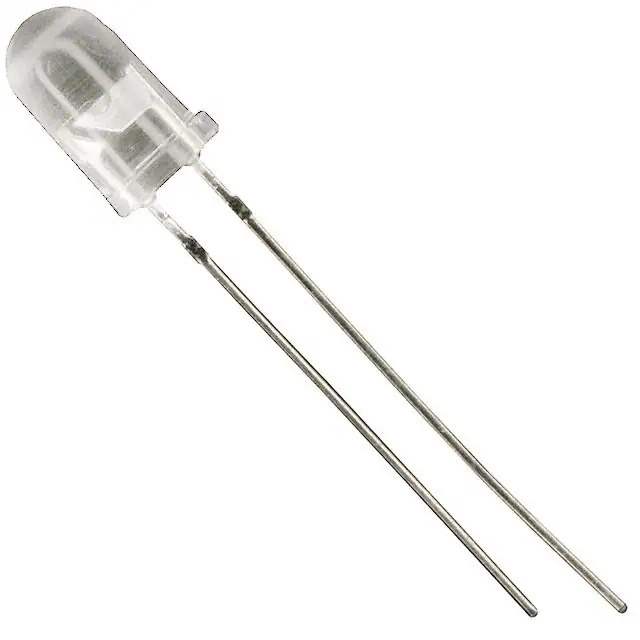

C503B-RAN-CZ0C0AA1 Real Image
Same model may have multiple batches, images only for reference.

C503B-RAN-CZ0C0AA1

Part No C503B-RAN-CZ0C0AA1
Manufacturer CreeLED, Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 5MM ROUND T/H
Datasheet
C503B-RAN-CZ0C0AA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr CreeLED, Inc.
Package Bulk
Product Status Active
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 20550mcd
Lens Style Round with Domed Top
Lens Size 5.00mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 15°
Mounting Type Through Hole
Wavelength - Dominant 624nm
Package / Case Radial
Supplier Device Package 5mm Round
Height (Max) 10.10mm
Base Product Number C503B
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 845989-C503B-RAN-CZ0C0AA1
Ultra Librarian 3D Model Ultra Librarian C503B-RAN-CZ0C0AA1 CAD Model

Description

The 845989-C503B-RAN-CZ0C0AA1 is a discrete LED indication component from CreeLED, Inc.

  • Color: Red
  • Standard Package: 500 pieces
  • Viewing Angle: 15°
  • Voltage Forward (Vf): 2.1V
  • Millicandela Rating: 20550mcd
  • Mounting Type: Through-Hole
  • Package Type: Radial
  • Lens Style: 5mm Round
  • Product Status: Active
