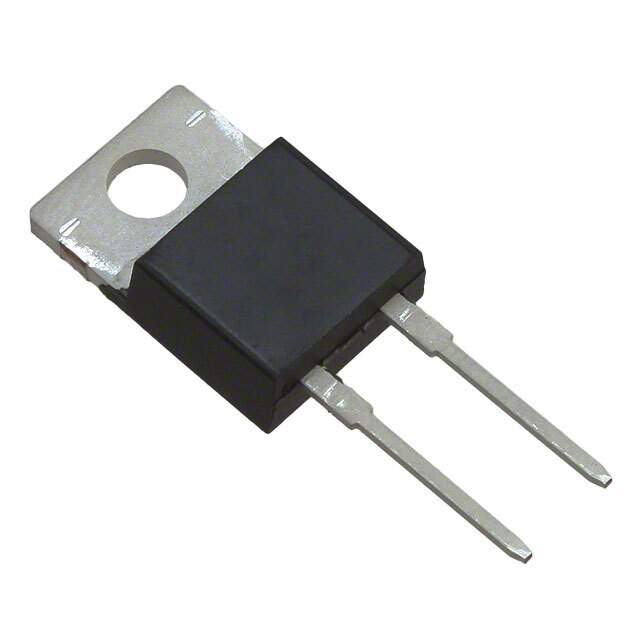

CSD10060A Real Image
Same model may have multiple batches, images only for reference.

CSD10060A

Part No CSD10060A
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 600V 16.5A TO220
Datasheet
CSD10060A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 16.5A
Voltage - Forward (Vf) (Max) @ If 1.8V @ 10A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 600V
Capacitance @ Vr, F 550pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 000296-CSD10060A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSD10060A CAD Model

Description

Overview

The CSD10060A is a robust SiC Schottky diode delivering high efficiency and reliability across various power electronic applications.

Features and Benefits

  • High reverse voltage rating
  • Excellent thermal reliability
  • Reduced switching losses
  • Rugged design for harsh environments
  • Compatible with lead-free soldering

Applications

  • HVDC systems
  • Power conditioning
  • Hybrid and electric vehicles
  • Renewable energy conversion
  • RF applications

Additional Details

Built with an eye towards sustainability and performance, the CSD10060A meets the escalating demands of high-power applications, providing exceptional thermal management and energy efficiency.
