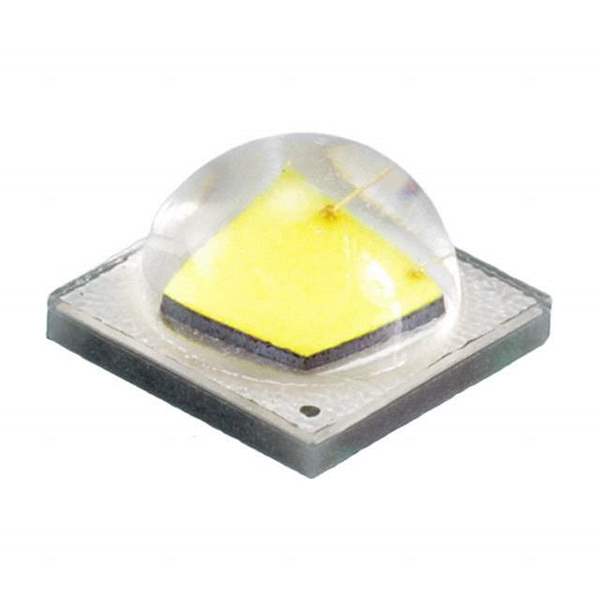

XMLBWT-00-0000-000LT40E5 Real Image
Same model may have multiple batches, images only for reference.

XMLBWT-00-0000-000LT40E5

Part No XMLBWT-00-0000-000LT40E5
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP NEUTRAL WHT 4000K 2SMD / LED Uni-Color Neutral White 4000K 75 2-Pin SMD EP
Datasheet
XMLBWT-00-0000-000LT40E5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp XM-L2
Packaging Reel package
Color White, Neutral
CCT (K) 4000K
Flux @ 85°C, Current - Test 250 lm (240 lm ~ 260 lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.85V
Lumens/Watt @ Current - Test 125 lm/W
CRI (Color Rendering Index) 75 (Typ)
Current - Max 3A
Viewing Angle 125°
Mounting SMD
Package 2020 (5050 Metric)
Manufacturer Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.124" (3.15mm)
Thermal Resistance of Package 2.5°C/W
Win Source Part Number 800115-XMLBWT-00-0000-000LT40E5
Popularity Medium
Supply and Demand Status Balance
Family Name XMLBWT-00-0000-000LT40E5
Introduction Date November 15, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian XMLBWT-00-0000-000LT40E5 CAD Model

Description

The Cree Inc. XMLBWT-00-0000-000LT40E5 is a neutral white LED component that is part of the XLamp XM-L2 series.

  • Package Size: 2020 (5050 metric)
  • Mounting Type: Surface Mount Technology (SMT)
  • Maximum Current: 3A
  • Forward Voltage: 2.85V
  • Viewing Angle: 125 degrees
  • CCT: 4000K
  • Flux @ Test Current: 250 lm @ 700mA
  • Lumens/Watt: 125 lm/W
  • CRI: 75
  • Thermal Resistance: 2.5 degrees Celsius per watt
  • Package Type: Reel
  • Introduction Date: November 15, 2011
