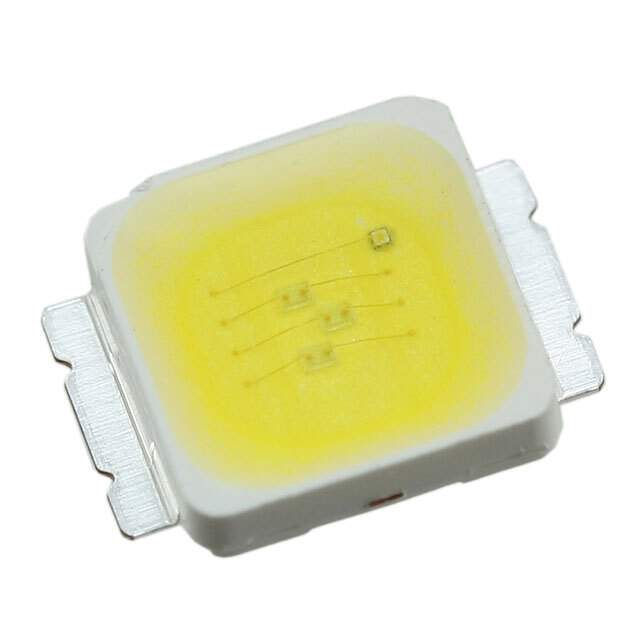

MX3AWT-A1-0000-000AE7 Real Image
Same model may have multiple batches, images only for reference.

MX3AWT-A1-0000-000AE7

Part No MX3AWT-A1-0000-000AE7
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description LED XLAMP WARM WHITE 3000K 2SMD
Datasheet
MX3AWT-A1-0000-000AE7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Reel - TR
Status Active
Color White, Warm
CCT (K) 3000K
Flux @ 25°C, Current - Test 91 lm (87 lm to 94 lm)
Current - Test 350mA
Forward Voltage 3.7V
Lumens/Watt @ Current - Test 70 lm/W
CRI (Color Rendering Index) 80 (Typ)
Current - Max 500mA
Viewing Angle 120°
Mounting SMD (SMT)
Case / Package SMD
Height - Seated (Max) 0.058" (1.48mm)
Thermal Resistance of Package 11°C/W
Win Source Part Number 208968-MX3AWT-A1-0000-000AE7
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MX3AWT-A1-0000-000AE7 CAD Model

Description

The MX3AWT-A1-0000-000AE7 is a white and warm color LED that is designed for surface-mount applications from Cree Inc.

  • Maximum Seated Height: 0.058 inches
  • Maximum Current: 500mA
  • Forward Voltage: 3.7V
  • Viewing Angle: 120 degrees
  • Color Rendering Index: 80
  • Thermal Resistance: 11 degrees Celsius per watt
  • Flux @ 25 degrees Celsius, Current Test: 91 lumens with a range of 87 lumens to 94 lumens
  • Lumens per Watt @ the Current Test: 70
