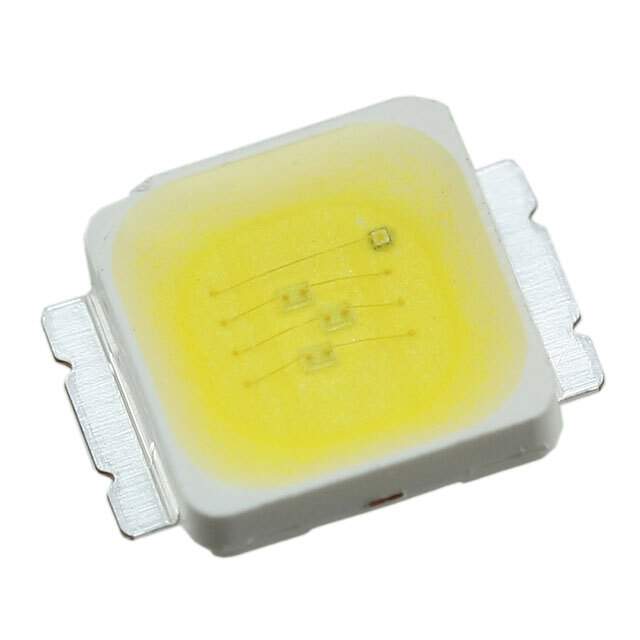

MX3AWT-A1-0000-000ADZ Real Image
Same model may have multiple batches, images only for reference.

MX3AWT-A1-0000-000ADZ

Part No MX3AWT-A1-0000-000ADZ
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description XLamp MX Family LEDs
Datasheet
MX3AWT-A1-0000-000ADZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp MX-3
Packaging Reel - TR
Color White, Cool
CCT (K) 5000K
Flux @ 25°C, Current - Test 91 lm (87 lm ~ 94 lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.7V
Lumens/Watt @ Current - Test 70 lm/W
CRI (Color Rendering Index) 75 (Typ)
Current - Max 500mA
Viewing Angle 120°
Mounting SMD
Package 2-SMD, Gull Wing, Exposed Pad
Manufacturer Package SMD
Size 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.058" (1.48mm)
Thermal Resistance of Package 11°C/W
Win Source Part Number 1228973-MX3AWT-A1-0000-000ADZ
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name MX3AWT-A1-0000-000ADZ
Introduction Date November 12, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MX3AWT-A1-0000-000ADZ CAD Model

Description

The Cree XLamp MX-3 is a 2-SMD, gull-wing, exposed pad package that is ideal for use in high-power, cool white LED lighting applications. With a maximum current of 500mA, this LED has a typical forward voltage of 3.7V and a viewing angle of 120 degrees.

  • Maximum Current: 500mA
  • Typical Forward Voltage: 3.7V
  • Viewing Angle: 120 degrees
  • Family Name: MX3AWT-A1-0000-000ADZ
  • Thermal Resistance: 11 degrees Celsius per watt
  • Packaging: Reel-tray
  • Color Temperature: 5000K
  • CRI: 75
