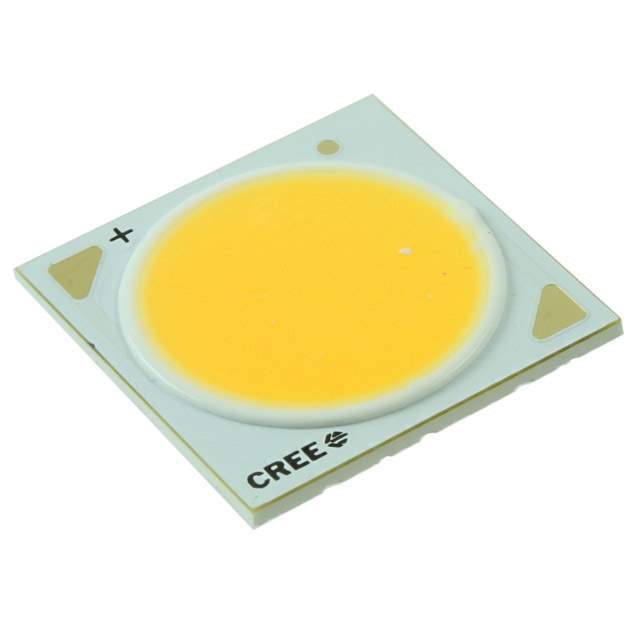

CXA2530-0000-000N0YR230G Real Image
Same model may have multiple batches, images only for reference.

CXA2530-0000-000N0YR230G

Part No CXA2530-0000-000N0YR230G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA2530 3000K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA2530-0000-000N0YR230G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2530
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2510 lm (2420 lm ~ 2600 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 87 lm/W
Current - Max 1.6A
CRI (Color Rendering Index) 93
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 771983-CXA2530-0000-000N0YR230G
Popularity Medium
Supply and Demand Status Limited
Family Name CXA2530-0000-000N0YR230G
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CXA2530-0000-000N0YR230G CAD Model

Description

The Cree Inc. XLamp CXA2530 is a chip on board (COB) type LED with a square configuration, available in white and warm colors.

  • Maximum Current: 1.6A
  • Forward Voltage: 36V
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Height: 1.70mm
  • Series: CXA2530
  • CCT: 3000K 3-Step MacAdam Ellipse
  • CRI: 93
  • Luminous Efficacy: 87 lm/W @ 800mA
  • Flux: 2510 lm @ 85 degrees Celsius
  • LES Diameter: 19.00mm
  • Dimension: 23.85mm L x 23.85mm W
  • Category: Optoelectronics
