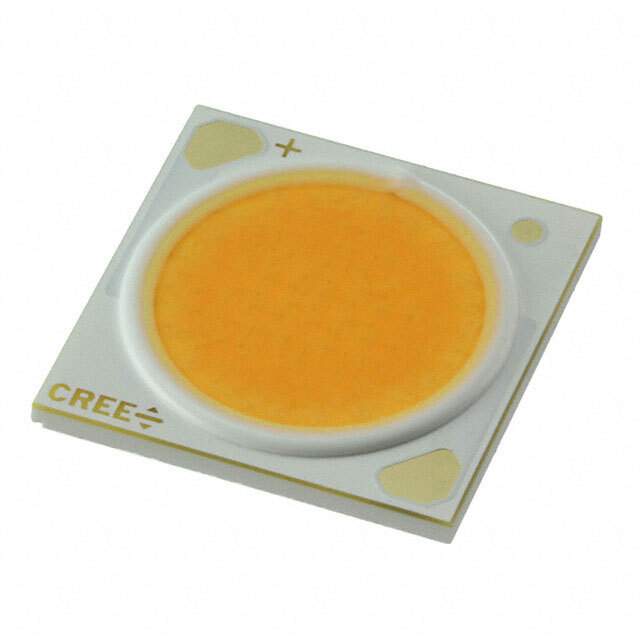

CXA1820-0000-000N00Q227G Real Image
Same model may have multiple batches, images only for reference.

CXA1820-0000-000N00Q227G

Part No CXA1820-0000-000N00Q227G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1820 2700K WHITE SMD / Chip On Board LED Lighting Module
Datasheet
CXA1820-0000-000N00Q227G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1820
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2180 lm (2100 lm ~ 2260 lm)
Current - Test 550mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 110 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 771968-CXA1820-0000-000N00Q227G
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1820-0000-000N00Q227G
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CXA1820-0000-000N00Q227G CAD Model

Description

The Cree XLamp CXA1820 COB is a high-performance white and warm LED that provides a viewing angle of 115 degrees.

  • Configuration: Square
  • Packaging: Tray
  • Voltage-forward (Vf): 36V
  • Current-max: 1.05A
  • Current-test: 550mA
  • Height: 1.70mm
  • Size: 17.85mm L x 17.85mm W
  • Lens Type: Flat
  • CCT (K): 2700K 3-Step MacAdam Ellipse
  • CRI (Color Rendering Index): 80
  • Lumens/watt: 110 lm/W
  • Flux @ Current/Temperature-Test: 2180 lm (2100 lm ~ 2260 lm)
  • Temperature-test: 85 degrees Celsius
  • Popularity: Medium
  • Supply and Demand Status: Balance
