Same model may have multiple batches, images only for reference.

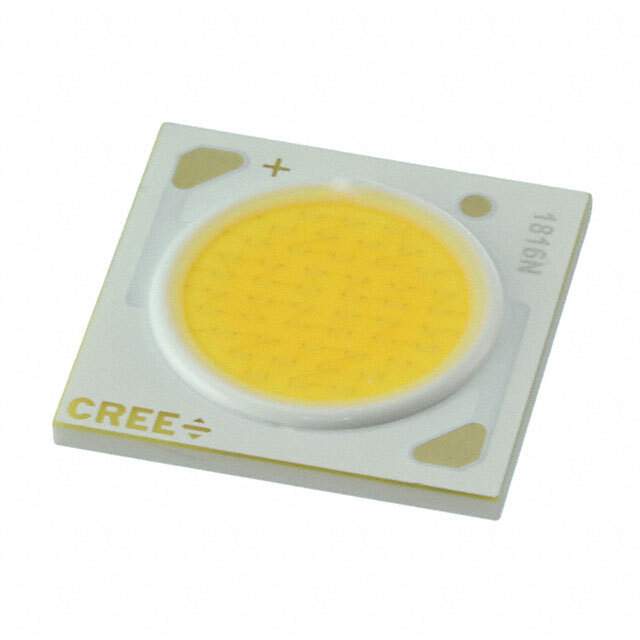

CXA1816-0000-000N0HP450G Real Image
Same model may have multiple batches, images only for reference.

CXA1816-0000-000N0HP450G

Part No CXA1816-0000-000N0HP450G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXA1816-0000-000N0HP450G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1816
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 2033 lm (1965 lm ~ 2100 lm)
Current - Test 450mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 125 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163785-CXA1816-0000-000N0HP450G
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1816-0000-000N0HP450G
ECCN EAR99
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian CXA1816-0000-000N0HP450G CAD Model

Description

The Cree XLamp CXA1816 chip on board (COB) LED is a high-performance lighting solution that delivers bright white cool light.

  • Maximum Current: 900mA
  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Voltage-Forward (Vf): 36V
  • Current Test: 450mA
  • Lens Type: Flat
  • Light-Emitting Surface (LES): 12.00mm diameter
  • CCT: 5000K 3-Step MacAdam Ellipse
  • CRI: 80
  • Flux Output: 2033 lumens
  • Lumens per Watt: 125 lm/W
  • Height: 1.70mm
  • Size: 17.85mm L x 17.85mm W
  • Category: Optoelectronics
  • Popularity: Medium
  • Supply and Demand Status: Limited
