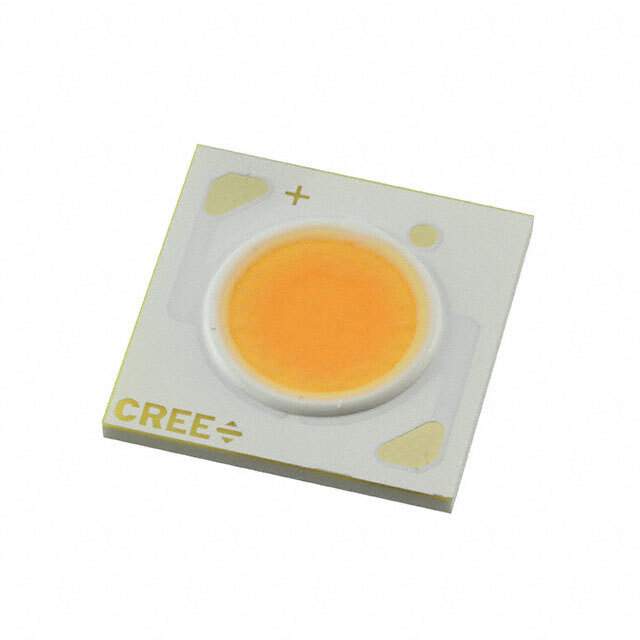

CXA1816-0000-000N00P235G Real Image
Same model may have multiple batches, images only for reference.

CXA1816-0000-000N00P235G

Part No CXA1816-0000-000N00P235G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description XLamp LED
Datasheet
CXA1816-0000-000N00P235G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1816
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1898 lm (1830 lm ~ 1965 lm)
Current - Test 450mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 117 lm/W
Current - Max 900mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 17.85mm L x 17.85mm W
Height 1.70mm
Light Emitting Surface (LES) 12.00mm Diameter
Lens Type Flat
Win Source Part Number 1163783-CXA1816-0000-000N00P235G
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name CXA1816-0000-000N00P235G
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CXA1816-0000-000N00P235G CAD Model

Description

The Cree Inc. XLamp CXA1816 is a chip on board (COB) LED with a square configuration and a white, warm color.

  • Type: Chip on Board (COB) LED
  • Configuration: Square
  • Color: White, Warm
  • Maximum Current: 900mA
  • Forward Voltage (Typical): 36V
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Color Temperature: 3500K
  • CCT MacAdam Ellipse: 3-Step
  • Color Rendering Index (CRI): 80
  • Luminous Efficacy: 117 lm/W @ 450mA
  • Flux: 1898 lm @ 450mA
  • Light Emitting Surface (LES) Diameter: 12.00mm
  • Height: 1.70mm
  • Series: CXA1816
  • Packaging: Tray
  • Estimated End-of-Life (EOL): 2024
