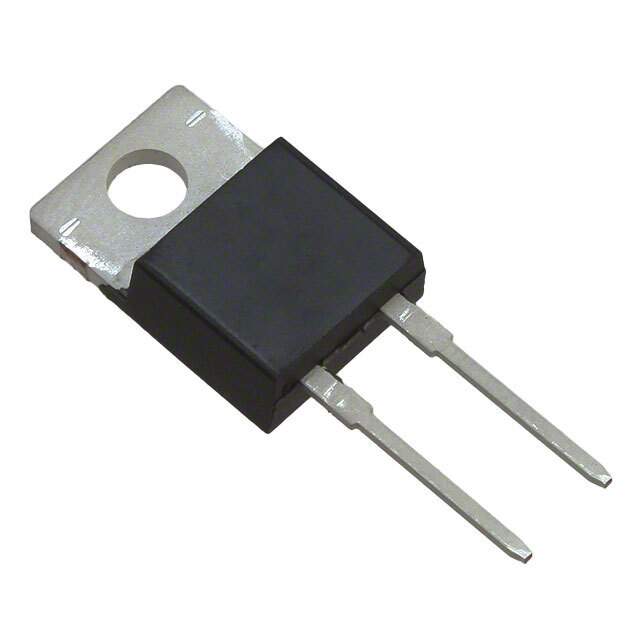

C2D10120A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Cree Inc.
Standard Package 50
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Series Zero Recovery
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) 10A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8V @ 10A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200µA @ 1200V
Capacitance @ Vr F 1000pF @ 0V 1MHz
Mounting Style Through Hole
Package TO-220-2
Manufacturer Device Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Catalog Silicon Carbide Schottky Diode
Win Source Part Number 049986-C2D10120A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C2D10120A CAD Model

Description

Product Description

Introducing the C2D10120A, a Silicon Carbide Schottky Diode known for its high efficiency and rapid switching capabilities. It's perfect for applications that demand low energy consumption and fast response.

Applications

  • Uninterruptible Power Supplies (UPS)
  • RFID Systems
  • Batteries and Energy Storage
  • High-Speed Pulse Circuits

Features and Benefits

  • Rapid Switching: Reduces delay and improves responsiveness.
  • Energy Efficient: Minimizes power losses during operation.
  • High Reliability: Extended lifespan reduces total cost of ownership.

Its impressive efficiency and performance make it suitable for a wide array of high-demand electrical engineering applications.
