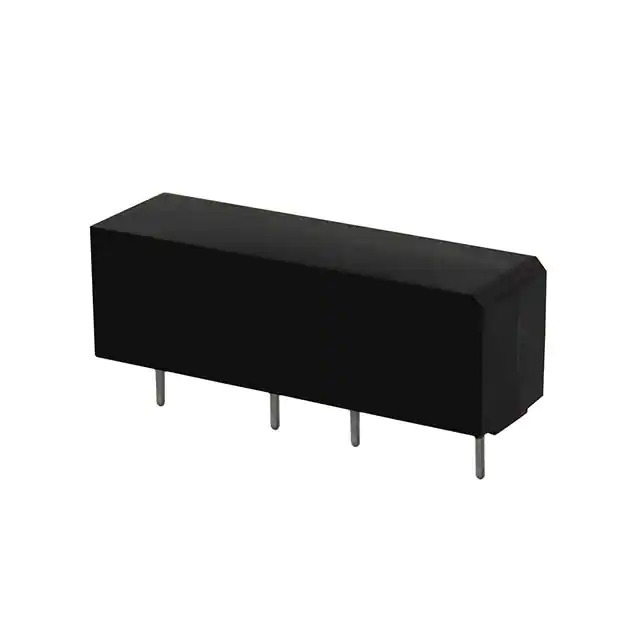

SHV12-1A85-78D4K Standex-Meder Electronics
Same model may have multiple batches, images only for reference.

SHV12-1A85-78D4K

Part No SHV12-1A85-78D4K
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 1A 12V
Datasheet
SHV12-1A85-78D4K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Standex-Meder Electronics
Series SHV
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1 A
Switching Voltage 1000VAC, 1000VDC - Max
Coil Current 24 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Seal Rating -
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.8 VDC
Operate Time 1.1 ms
Release Time 0.1 ms
Temperature Range - Operating -40°C ~ 100°C
Contact Material -
Coil Resistance 500 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1357243-SHV12-1A85-78D4K
Ultra Librarian 3D Model Ultra Librarian SHV12-1A85-78D4K CAD Model

Description

The SHV12-1A85-78D4K is a reed relay manufactured by Standex-Meder Electronics.

  • Coil Voltage: 12VDC
  • Diode Feature: Yes
  • Contact Rating: 1A
  • Switching Voltage: 1000VAC and 1000VDC
  • Relay Type: Non-Latching
  • Must Operate Voltage: 8.4VDC
  • Must Release Voltage: 1.8VDC
  • Operate Time: 1.1ms
  • Release Time: 0.1ms
  • Coil Resistance: 500 Ohms
  • Mounting Type: Through Hole
  • REACH: Unaffected
  • ECCN: EAR99
