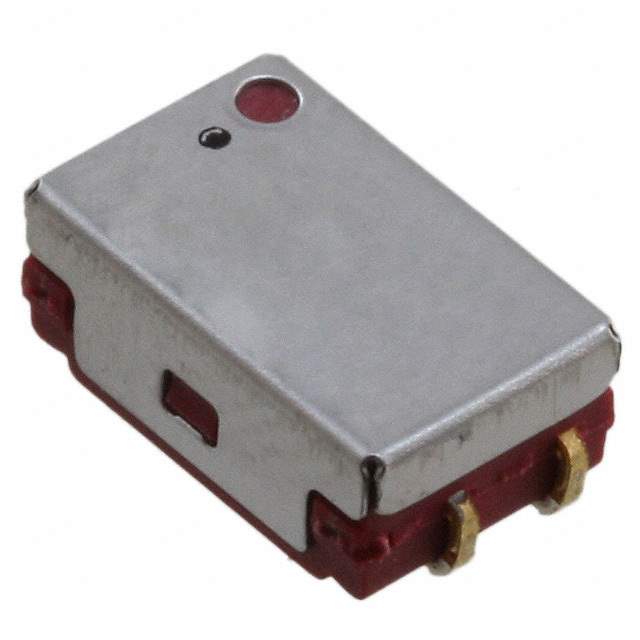

9901-05-20TR Real Image
Same model may have multiple batches, images only for reference.

9901-05-20TR

Part No 9901-05-20TR
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED SPST 250MA 5V
Datasheet
9901-05-20TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series 9900
Package Tape & Reel
Mounting Type Surface Mount
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 250 mA
Switching Voltage 100VAC, 100VDC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Features EMI Shielded
Termination Style J Lead
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.4 VDC
Operate Time 0.25 ms
Release Time 0.05 ms
Temperature Range - Operating -20°C ~ 85°C
Coil Resistance 150 Ohms
Base Product Number 9901-0
Standard Package 1,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1349842-9901-05-20TR
Ultra Librarian 3D Model Ultra Librarian 9901-05-20TR CAD Model

Description

The 9900 series reed relay is a reliable and efficient component designed for use in various electronic applications from Coto Technology.

  • Contact Form: SPST-NO (1 Form A)
  • Termination Style: J-Lead
  • EMI Shielded: Yes
  • Coil Voltage: 5VDC
  • Coil Resistance: 150 Ohms
  • Coil Current: 33.3mA
  • Contact Rating: 250mA
  • Switching Voltage: 100VAC/100VDC max
  • Operate Time: 0.25ms
  • Release Time: 0.05ms
  • Temperature Range: -20°C to 85°C
  • Packaging: Tape and Reel
  • Standard Package: 1,000
