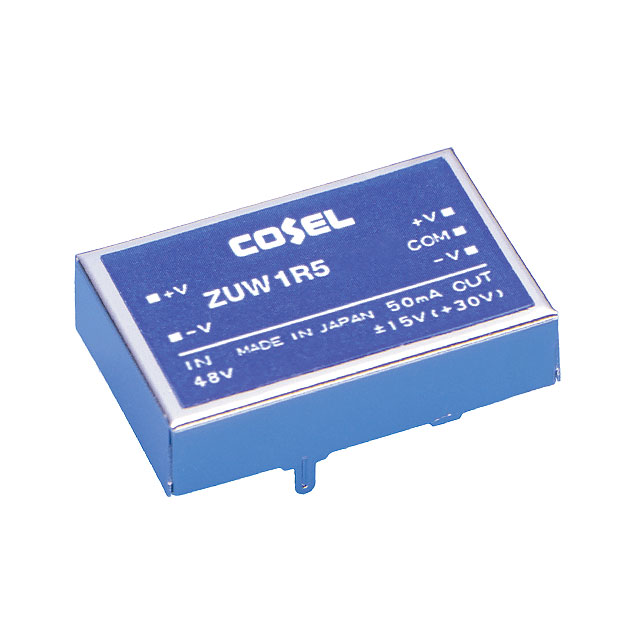

ZUW1R52415 Others
Same model may have multiple batches, images only for reference.

ZUW1R52415

Part No ZUW1R52415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series ZUW (1.5W)
Package Box
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 50mA, 50mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -20°C ~ 71°C (With Derating)
Efficiency 71%
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 413636-ZUW1R52415
Ultra Librarian 3D Model Ultra Librarian ZUW1R52415 CAD Model

Description

The Cosel USA ZUW1R52415 is a DC-DC converter module designed for board mount power supplies.

  • Series: ZUW (1.5W) series
  • Type: isolated module with OCP (Over Current Protection)
  • Size: 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
  • Application: ITE (Commercial)
  • Package: 1 pcs
  • Voltage Isolation: 500V
  • Outputs: two outputs with a maximum current of 50mA each
  • Input Voltage Range: 18V to 36V
  • Output Voltages: 15V and -15V
  • Mounting: through-hole
  • Package/Case: 5-DIP Module
