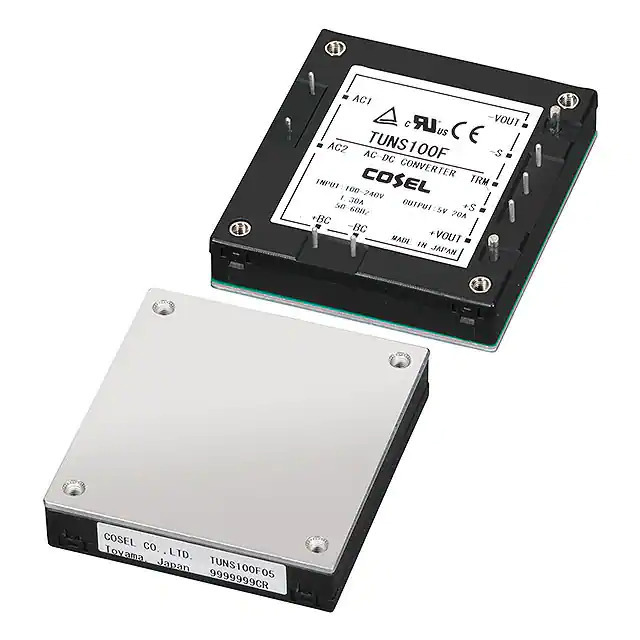

Same model may have multiple batches, images only for reference.

TUNS100F05

Name: TUNS100F05
Brand: Cosel USA, Inc.
SKU: 1355433
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TUNS100F05
Manufacturer	Cosel USA, Inc.
Catalog	Board Mount AC DC Converters
Description	AC/DC CONVERTER 5V 100W / Enclosed AC DC Converters 1 Output 5V 20A 85 ~ 264 VAC Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - AC DC Converters
Mfr	Cosel USA, Inc.
Series	TUNS (100W)
Package	Box
Product Status	Active
Type	Enclosed
Number of Outputs	1
Voltage - Input	85 ~ 264 VAC
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	20A
Power (Watts)	100 W
Applications	ITE (Commercial)
Features	Universal Input
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	85%
Mounting Type	Through Hole
Package / Case	7-DIP Module
Size / Dimension	2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
Approval Agency	CE, CSA, cURus, TUV, UL
Standard Number	60950-1; 62368-1
Line Regulation	10mV
Load Regulation	10mV
Base Product Number	TUNS100
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9520
California Prop 65	Warning Information
Win Source Part Number	1355433-TUNS100F05
Ultra Librarian 3D Model	Ultra Librarian TUNS100F05 CAD Model

Alternative Products

Description

The Cosel USA TUNS100F05 is an AC-DC converter module in the TUNS series.

Power Output: 100W
Temperature Range: -40°C to 100°C (with derating)
Type: Enclosed
Input Voltage: 85V to 264V AC
Application: ITE (Commercial)
Maximum Current Output: 20A
Efficiency: 85%
Package: 7-DIP module
Safety Standards: CE, CSA, cURus, TUV, and UL
Status: Active
