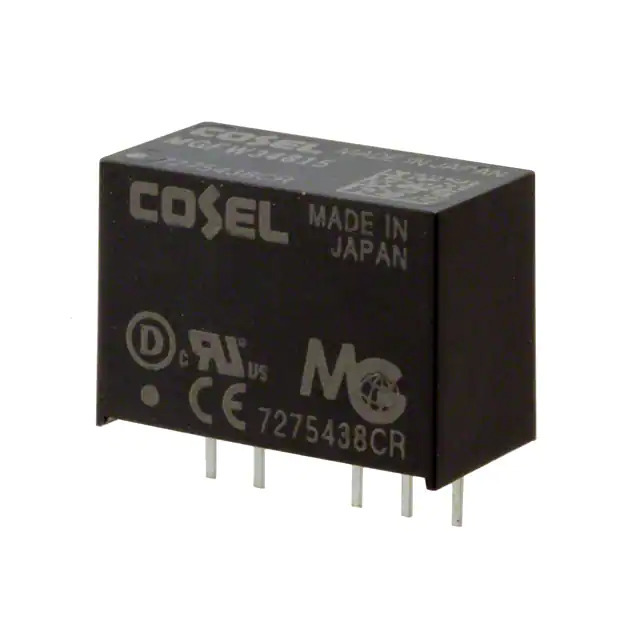

Same model may have multiple batches, images only for reference.
MGFW32412 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

MGFW32412

Part No MGFW32412
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3.1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFW (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 130mA, 130mA
Power (Watts) 3.1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 5-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1372836-MGFW32412
Ultra Librarian 3D Model Ultra Librarian MGFW32412 CAD Model

Description

The Cosel USA MGFW (3W) isolated module is a high-quality DC-DC converter used in power supply applications.

  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Power (Watts): 3.1W
  • Efficiency: 82%
  • Mounting Type: Through Hole
  • Package / Case: 5-SIP Module
  • Operating Temperature: -40°C ~ 85°C
  • Features: OCP
  • Isolation Voltage: 1.5 kV
