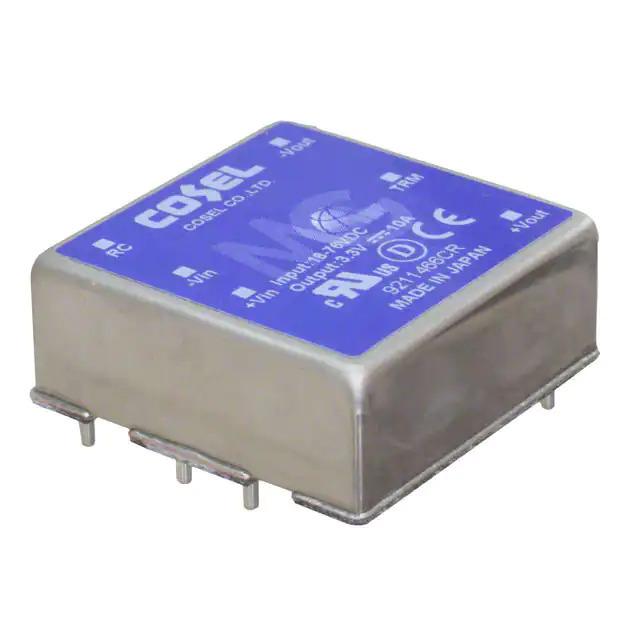

Same model may have multiple batches, images only for reference.
MGFS40243R3 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

MGFS40243R3

Part No MGFS40243R3
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 33W / Isolated Module DC DC Converter 1 Output 3.3V 10A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFS (40W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 10A
Power (Watts) 33 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features -
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package -
Control Features Enable, Active Low
Approval Agency CE, cURus, DEMKO
Base Product Number MGFS40243
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355462-MGFS40243R3
Ultra Librarian 3D Model Ultra Librarian MGFS40243R3 CAD Model

Description

The MGFS40243R3 is a DC-DC converter module in the MGFS series from Cosel USA.

  • Power Output: 33W
  • Temperature Range: -40°C to 85°C (with derating)
  • Converter Type: Isolated Module
  • Voltage Input Range: 9V to 36V
  • Voltage Output: 3.3V
  • Package: 6-DIP module
  • Maximum Current Output: 10A
  • Efficiency: 89%
  • Safety Standards: CE, cURus, and DEMKO
