Same model may have multiple batches, images only for reference.

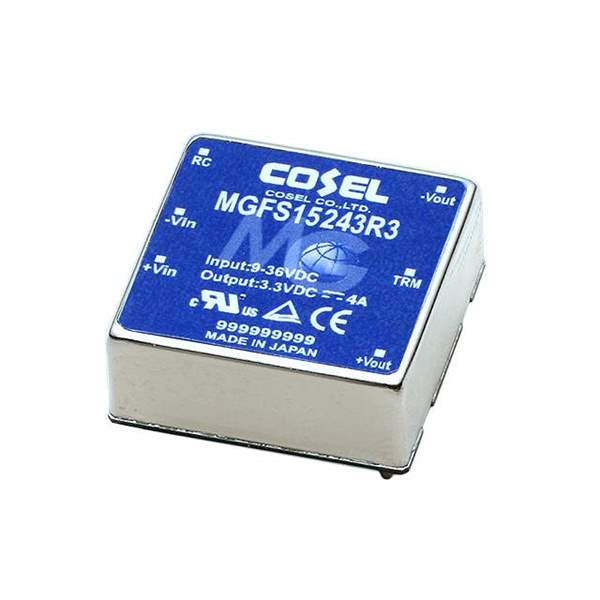

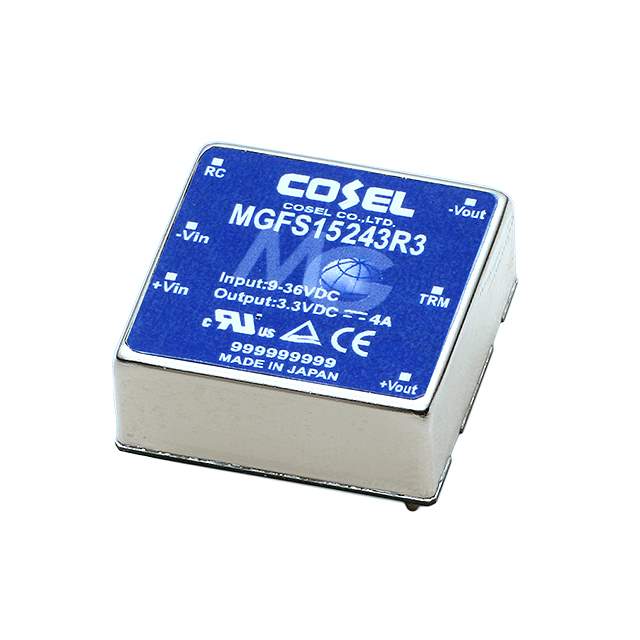

MGFS15483R3 Real Image
Same model may have multiple batches, images only for reference.

MGFS15483R3

Part No MGFS15483R3
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V / Isolated Module DC DC Converter 1 Output 3.3V 4A 18V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series MGFS (15W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 76V
Voltage - Output 1 3.3V
Current - Output (Max) 4A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number MGFS15483
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-1344
Standard Package 1
Win Source Part Number 1019429-MGFS15483R3
Ultra Librarian 3D Model Ultra Librarian MGFS15483R3 CAD Model

Description

The MGFS15483R3 is a DC DC converter belonging to the MGFS (15W) series.

  • Type: Isolated Module
  • Package: Box
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Maximum Current Output: 4A
  • Voltage Input: 18V to 76V
  • Voltage Output: 3.3V
  • Efficiency: 87%
  • Mounting Type: Through-Hole
  • Win Source Part Number: 1019429-MGFS15483R3
