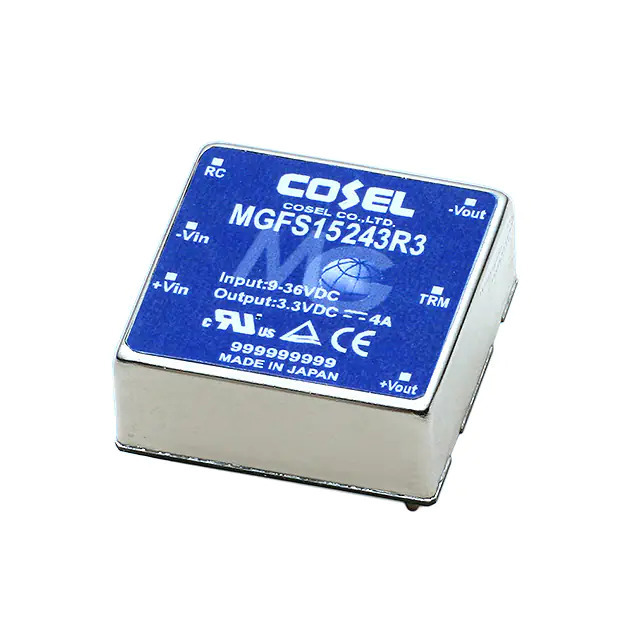

Same model may have multiple batches, images only for reference.
MGFS152415 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

MGFS152415

Part No MGFS152415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V / Isolated Module DC DC Converter 1 Output 15V 1A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFS (15W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 1A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355430-MGFS152415
Ultra Librarian 3D Model Ultra Librarian MGFS152415 CAD Model

Description

The Cosel USA, Inc. MGFS (15W) is an isolated module power supply in a 6-DIP module package.

  • Input Voltage Range: 9V to 36V
  • Maximum Output Current: 1A
  • Output Voltage: 15V
  • Voltage Isolation: 1.5 kV
  • Efficiency: 89%
  • Application: ITE (Commercial)
  • Features: Remote on/off and overcurrent protection
  • Operating Temperature: -40°C to 85°C with derating
  • Package Dimensions: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Product Category: Power Supplies - Board Mount - DC DC Converters
  • Product Status: Active
  • Manufacturer: Cosel USA, Inc.
