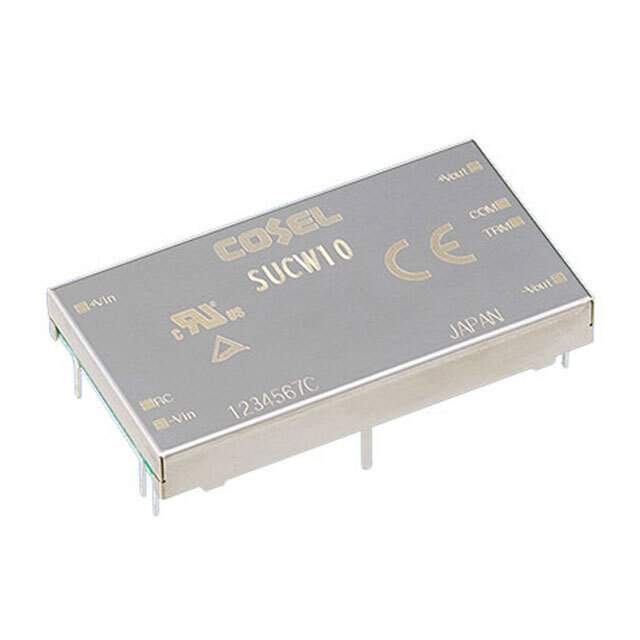

SUCW102412C Real Image
Same model may have multiple batches, images only for reference.

SUCW102412C

Part No SUCW102412C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 450mA, 450mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUCW (10W)
Package Tray
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 450mA, 450mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 1.58" L x 0.85" W x 0.28" H (40.2mm x 21.5mm x 7.0mm)
Base Product Number SUCW102412
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1348774-SUCW102412C
Ultra Librarian 3D Model Ultra Librarian SUCW102412C CAD Model

Description

The Cosel SUCW102412C is an isolated module DC/DC converter that is perfect for ITE (Commercial) applications.

  • Voltage Input: 18V to 36V
  • Voltage Output: 12V and -12V
  • Current Output: 450mA each
  • Efficiency: 86%
  • Features: Remote On/Off and Overcurrent Protection
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Approvals: CE and cURus
